Double Wall Outdoor Telecom Cabinet Galvanized Steel Fans Cooling Floor Mount
Product Details
power supply cabinet
,outdoor power enclosure
,Double Wall Telecom Cabinet
Double Wall Outdoor Telecom Cabinet Galvanized Steel Front Rear Access Fans Cooling
1. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Size | External Size: 2100mm×900mm×800mm(H×W×D) |
| Component |
The whole cabinet is composed of two parts: the upper part is used for installing electronic equipment,16U, and the lower part is used for installing batteries. The installation method is floor mounted. |
|
| Material | Galvanized steel, double wall | |
| Structure |
|
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Outdoor polyester light grey RAL 7035 coating or custom made | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+75°C | |

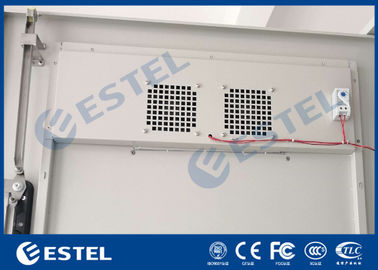

| Cooling Method | Fans | 2 fans,48VDC |
| Monitoring | Smoke Sensor | 1pc, Monitor the smoke status inside the cabinet and provide real time alarm. |
| Door Sensor | 2pcs,When unlawfully opened, provide real-time alarm. | |
| Temperature Sensor | 2pcs, used to detect the temperature inside the cabinet and send an alarm. | |
| PDU | PDU |
DC circuit breaker: 5x16A,5x10A; 1x MCB 4P 63A,4xMCB 2P 16A AC circuit breaker: 1x MCB 4P 63A,4xMCB 2P 16A |
| Illumination | Illumination | LED light, 1 pc,48VDC |
2. Cabinet Instruction

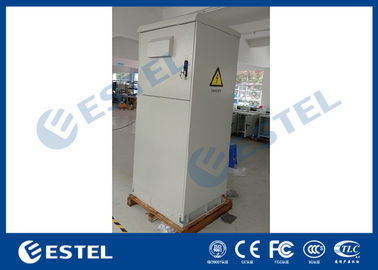

2.1 Cabinet Dimension
External Dimension:H×W×D 2100×900×800mm
2.2 Cabinet Component
The whole cabinet is composed of two parts:
The upper part is used for installing electronic equipment,16U and the lower part is used for installing batteries
3. Cabinet Door And Door limit
3.1The cabinet door uses embedded structure.
There’s open door alarm sensor, which works together with the environment monitoring unit.

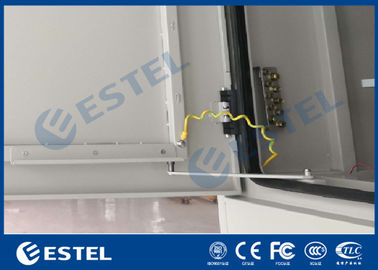

3.2The door opening angle is larger than 110° and the door limit device can limit the opening angle.
(1)The door limit device can limit the door position when it is open.
(2) The door limit function is automatically activated when the door is open, and should be canceled manually when the door is closed.

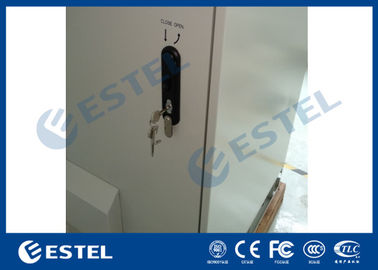

3.3 The lock is theftproof three point lock.
Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device

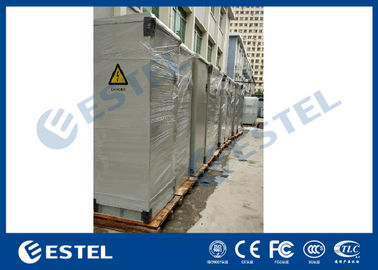

4.Cabinet Package
5. Delivery Time
Usually about 10-15 days. The exact lead time need to be confirmed according to the quantity of order.

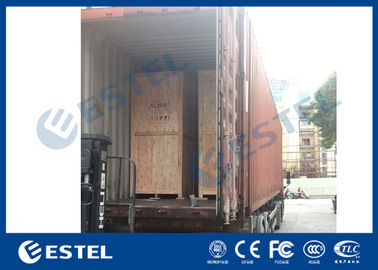

Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
-
