Outdoor Telecom Cabinet
>
|
| Place of Origin | Shenzhen, China (Mainland) |
| Brand Name | ESTEL |
| Certification | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number | 121070714050001 |

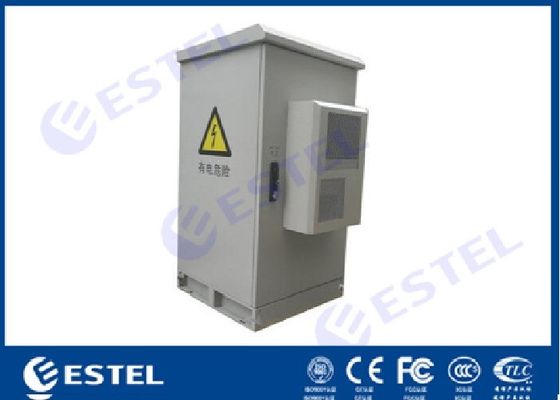

24U Assembled Structure 500W Cooling Capacity Air Conditioning Outdoor Telecom Cabinet
1. Cabinet Application
This series outdoor Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
2. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Size H*W*D 1400*650*650mm |
| Layout | One compartment, used for installing 19” equipment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with thermal insulation | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | 220VAC |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4.Accesseries List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H×W×D 1400× 650× 650mm. (2) One compartment: including 24U 19” rack. (3) With one front door, with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 500W Power Supply: 220VAC, 50Hz |
| 3 | Fan | 2 | Set | 48VDC |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | 220VAC |
| 6 | Package | 1 | Set | Wooden Case |
3. Cabinet Drawing

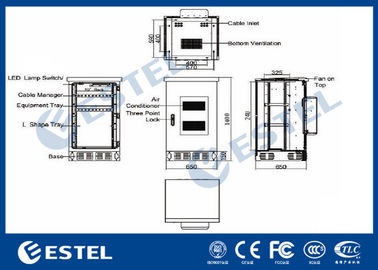

External Dimension H×W×D 1400×650×650mm(19”, 24U);
4. Door Lock Design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
(2) Three point lock
5.Cabinet Package
