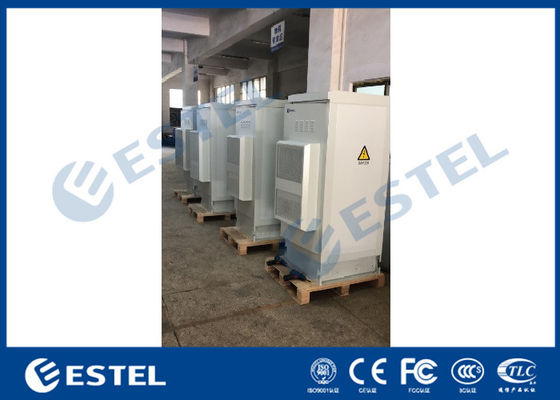

One Compartment Outdoor Equipment Enclosure , 19 Inch Rack Cabinet Low MTTR

IP55 One Compartment 19”Mounting Rack Galvanized Steel Outdoor Telecom Cabinet

​

1. Cabinet Advantage

1. Ease of access

All components are front accessible; no side or back clearance is required. Internal components and connections are easily accessible and/or removable through the front door.

2. Ease of Maintenance

Most power and control modules are provided in sub-assembled chassis with plug and socket connection for easy serviceability and minimized spare part inventory.

3. Low MTTR

Due to the ease of access to internal components and the plug-and-socket subassemblies in addition to the availability of self-diagnostic PCB, It is accredited for exceptionally low mean time to repair (MTTR).

4. Ease of installation

Cabinets are floor mountable with bottom entry equipped for cable or conduit entrance. Input, output and remote alarm connections are wired to internal terminal lugs that are easily accessible. Top entry is available upon request.

5. Ease of adjustment

Output voltage, current limits and alarm levels are easily adjustable.

2. Cabinet Parameters

1. The cabinet has 19” mounting rack inside,32U.

2. The cabinet is one compartment structure.

3. The cabinet is an outdoor cabinet with protection grade of IP55.

4. The bottom of the cabinet is provided with cable inlet.

5. Cabinet material: galvanized steel, double wall,with heat insulation.

6. External dimension of cabinet: W × D × H 750 × 750 × 1750mm.

7. The cabinet has two air fans, 48VDC.

8. There are 4 pairs of L-shaped brackets inside the cabinet.

9. The cabinet is equipped with one front door, three-point lock and padlock.

10. Cabinet with ground bar inside.

11. One air conditioner is installed on the front door of the cabinet. Cooling capacity of air conditioner: 1500W; 48VDC.

12. The cabinet is equipped with 2 AC PDUs

13. The cabinet is equipped with one LED lamp, 48VDC. When opening the door, the light will turn on automatically. When the door is closed, the light will turn off automatically. 14. Cabinet with 1 environmental monitoring unit, 19 inch, 1U, input voltage: 48VDC, supporting SNMP communication. With 1 access sensor, 1 water immersion sensor, 1 smoke sensor, 1 temperature and humidity sensor, 1 vibration sensor.

3. Cooling System

3.1 The cabinet has two air fans, 48VDC.

3.2 One air conditioner is installed on the front door of the cabinet. Cooling capacity of air conditioner: 1500W; 48VDC.

4. Cable Pictures

There are cable inlets at the bottom of the cabinet.
