|Cabinet Lock:||Anti-theft Three Point Lock(support Padlock)||Cooling System:||Air Conditioner|
|Protection Level:||IP55||External Size:||800mm×800mm×1800mm(H×W×D)|
|Material:||Galvanized Steel, 1.5mm Thick, Insulation: 20mmPEF||Package:||Wooden Case With Pallets|
telecom equipment cabinet,
outdoor telecom enclosure,
Theftproof Outdoor Electrical Cabinet
Theftproof One Compartment Outdoor Cabinet Galvanized Steel Double Wall
1. Product Advantage
(1) High integrated
High compatibility, high integration
Supporting multiple equipments, good appearance
(2) Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency
(3) Flexible structure
Compartment type design
Two compartments / multiple compartments
(4) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.
(5) Theft - proof
Inside installation, inside fixing, no outer screws
Anti-theft three point lock
Inside door hinges, multiple protection
Embedded cabinet door, theft proof
2. Cabinet Specification
|Cabinet Body||Material||Galvanized steel, double wall|
|Structure||One compartment,the upper part for installing 19” equipment, the lower part for installing battery|
|Security Lock||Anti-theft three-point locking system, support padlock|
|Surface Treatment||Outdoor polyester powder coating|
|Color||Light grey RAL7035 coating or custom made|
|Cooling Method||Compressor Air Conditioner||1000W cooling capacity|
|TEC Air Conditioner||Optional|
|Fan||DC48V,include fan temperature controller|
|Storage & Transport Temperature||-40°C～+70°C|
|Sensors (Optional)||Smoke sensor, water sensor, door sensor, temperature&humidity sensor|
(1)Heavy duty outdoor construction
(2)Standard 19” rack rail
(4)Anti-theft three-point locking system, support padlock
(5)Outdoor powder coating, anti-corrosion
(6)Standard Color: light grey, RAL7035. Custom color available
(7)Cable inlet at cabinet bottom
(8)Include grounding bar
(9)Include door stopper
(10)Optional cooling solutions: fan ventilation, air conditioner, heat exchanger
4.1 Cabinet door Stopper
The cabinet includes one front door. The cabinet door uses embedded structure.
The door opening angle is larger than 110°and the door limit device can limit the opening angle.
The lock is theftproof three point lock, supporting padlock.
Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
Feeder cable and other external cables all use bottom wiring method.
4.4 Connection and Fastening
(1) Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2) Door hinges use inner hinge mode.

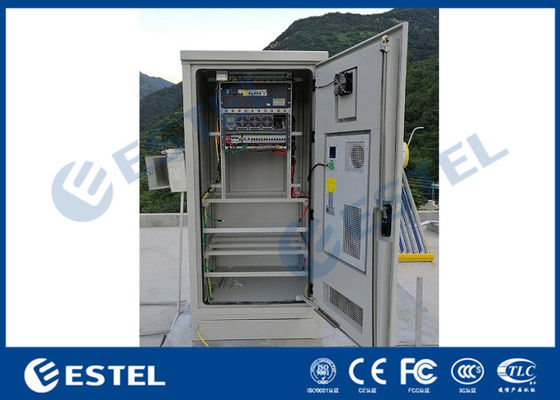

5. Cabinet Internal Pictures
6. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
