Customized Dimensions Outdoor Rack Mount Enclosure Heat Exchanger Cooling System

Customized Dimensions Outdoor Rack Mount Enclosure Heat Exchanger Cooling System
Customized Dimensions Outdoor Rack Mount Enclosure Heat Exchanger Cooling System Customized Dimensions Outdoor Rack Mount Enclosure Heat Exchanger Cooling System

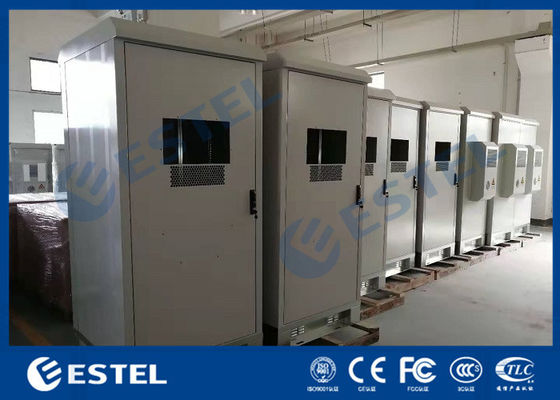

Large Image :  Customized Dimensions Outdoor Rack Mount Enclosure Heat Exchanger Cooling System

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 331090820050007
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 358-2143 usd
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Contact Now
Detailed Product Description
Cabinet Lock: Anti-theft Three Point Lock(support Padlock) Cooling System: 180W/K Heat Exchanger
Protection Level: IP55 External Size: 900mm×800mm×2000mm(H×W×D) Or Customized
Material: Galvanized Steel, 1.5mm Thick, Insulation: 20mmPEF Package: Wooden Case With Pallets
Cabinet: Outdoor Telecom Cabinet
Highlight:

telecom equipment cabinet

,

outdoor telecom enclosure



Customized Dimensions Heat Exchanger Cooling System Integrated Outdoor Telecom Cabinet



1. Product Quick Details



Product Type Outdoor Telecom cabinet
Protection Level IP55
External Size Customized
Material Galvanized Steel
Cooling system Heat Exchanger and fans
Color RAL7035 or customized
Surface Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Package Wooden box



2. Product Parameters



Configuration Item Technical Parameter
Cabinet Body Size

External Size: 900mm×800mm×2000mm(H×W×D)

Or customized dimensions
Component

The whole cabinet is composed of two parts:

  • The top part of the cabinet is 19”mounting rack.
  • The lower part of the cabinet is two layers for battery.

The installation method is floor mounted.
Material Galvanized steel, 1.5mm thick, insulation: 20mmPEF.
Structure
  • Single wall, with insulation
  • One front door,hidden zinc alloy hinge
  • Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device
  • Door stopper / wind lock is installed on the inside of the cabinet door
  • Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof
  • The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced.
  • Include standard 19“ rack inside the cabinet, high universality. Special rack or electrical lining board inside the cabinet can be custom made.
  • Equipped with cable manager
  • Cable inlets at the bottom of cabinet
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Outdoor polyester light grey RAL 7035 coating or custom made
Ingress Protection IP55 or custom made
Cooling Method Heat exchanger 180W/K Cooling capacity
Other Illumination LED light, 48VDC



3. Cooling System



3.1 Heat exchanger with180W/K Cooling capacity, installed on the front door of the cabinet.



3.2 Fans:220VAC, installed on the top cover



4. Cable Inlets



Cable inlets are all at the bottom of the cabinet.
