Easily Assembled Outdoor Telecom Cabinet Galvanized Double Steel 1500W IP55

Easily Assembled Outdoor Telecom Cabinet Galvanized Double Steel 1500W IP55
Easily Assembled Outdoor Telecom Cabinet Galvanized Double Steel 1500W IP55

Large Image :  Easily Assembled Outdoor Telecom Cabinet Galvanized Double Steel 1500W IP55

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 132090921050009
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Detailed Product Description
External Size: W*D*H 900*900*2100mm Material: Galvanized Steel
Cabinet Lock: Anti-theft Three Point Lock(support Padlock) Cable Inlets: From Cabinet Bottom
Mounting Type: Floor Mount Cooling System: Air Conditioner
Certificates: CE Protection Level: IP55
High Light:

telecom equipment cabinet

,

outdoor telecom enclosure



Easily Assembled Galvanized Double Steel Outdoor Telecom Cabinet 1500W Air Conditioner



1. Cabinet Parameters



Cabins Outdoor telecom cabinet
Material Galvanized sheet,double wall.
Doors 1 Front door
Door lock Anti-theft door lock
Cable inlet Cable entry holes are at the bottom of the cabinet
Heat insulation Optional
Battery installation 2 battery layers
Thickness Outer panel adopt 1.5mm,internal panel adopt 1.0mm.
Dimension 2100H*900W*900D mm
Cooling method 220AC air conditioner cooling system
Surface treatment

Painting,plasma electrostatic painting,hot galvanized,powder coating,

polishing,brushing,etc.

Mounting method Floor mounting type
Optional accessories The door sensor, water sensor, smoke sensor, temperature and humidity sensor
Security design Embedded door, embedded hinges, 3-point security lock
IP degree IP55
Color RAL7035
Package Wooden case with pallets
Working Temperature -20~+55ºC
Storage Temperature -40~+65ºC



2. Cabinet Feature



  • Galvanized steel material
  • Attractive powder coat finish
  • Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
  • IP55 cabinet, walls and roof in double steel with high quality insulation
  • High performance Air-conditioning unit for heat removal
  • Door stopper to hold door open at service
  • Floor mounting type



3. Cabinet Parameters



3.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

3.2 The cabinet cooling uses air conditioner.

3.3 Including -48VDC illumination lamp.

3.4 The cabinet includes power and environment monitoring unit, which can send power failure alarm, door open alarm, temperature and humidity alarm, smoke alarm, water alarm etc.

3.5 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.

3.6 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.

3.7 The cabinet includes 19” standard installation rack.

3.8 IP55 protection level



4. Cabinet Introduction



4.1 Cabinet Material



The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.



4.2 Cabinet Structure

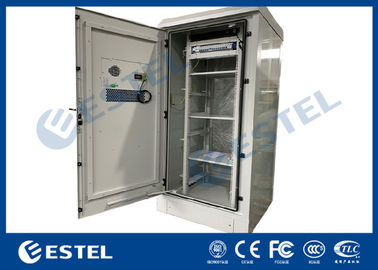

The cabinet is equipment cabinet, including 19” equipment installation rack, with air conditioner on cabinet door.



4.3 Cabinet Door and Lock



The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.



5. Applicable environment conditions



  •      Operating temperature: -20°C ~ + 55°C
  •      Storage temperature: -40°C ~ + 65°C
  •      Transport temperature: -40°C ~ + 70°C
  •      Relative humidity (RH): 5%~99%







7. Cooling System



Air conditioner:1500W cooling capacity,240VAC.



Easily Assembled Outdoor Telecom Cabinet Galvanized Double Steel 1500W IP55 0



8. Cabinet Package



Easily Assembled Outdoor Telecom Cabinet Galvanized Double Steel 1500W IP55 1
