Galvanized Steel Outdoor Rack Mount Enclosure Double Wall IP55 With Front Rear Access
1. Cabinet Application
This series cabinet is made of aluminum and has the characteristics of light weight, fast heat dissipation and easy handling. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other equipments can be installed in the cabinet, which can provide reliable mechanical and environmental protection cabinets for the normal operation of internal equipment.
2. Cabinet specifications
| External Size | W*D*H 800*900*2100mm |
| Material | Galvanized, Double wall with insulation |
| Cabinet Layout | One compartment |
| Protection Level | IP55 |
| Cable Entry | From cabinet bottom |
| Illumination | DC48V LED lamp |
| Heat Insulation | PEF |
| Grounding Protection | Copper bar |
| Color | Grey (support custom made) |
| Cooling System | AC220V Air Conditioner and Heat Exchanger |
| Coating | Anti-corrosion outdoor powder coating |
| Accessories Options | PDU, Environment monitoring system,Battery. |
| Alarm sensors | The door sensor, water sensor, smoke sensor, temperature and humidity sensor, vibration sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type |
With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock). |
| Cabinet Lock | Anti-theft three point lock(support padlock) |
| Certificates | CE |
| Package | Wooden case with pallets |
| Mounting type | Wall mount |
3. Product Applications
Trackside and roadside
Internet service providers
Edge computing & IoT hubs
Passive and active optical networks
Mobile & Radio, 3G 4G 5G, Tetra, Microwave
Urban and rural fibre deployment
New build home developments
Environmental monitoring
CCTV and security systems
4. Connection And Fastening
5. PDU Pictures
6. Cable Inlets

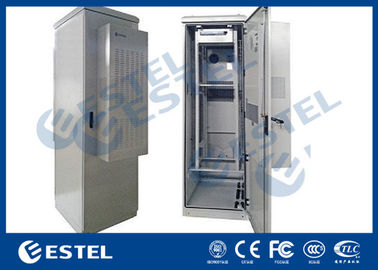

7. Product Pictures
