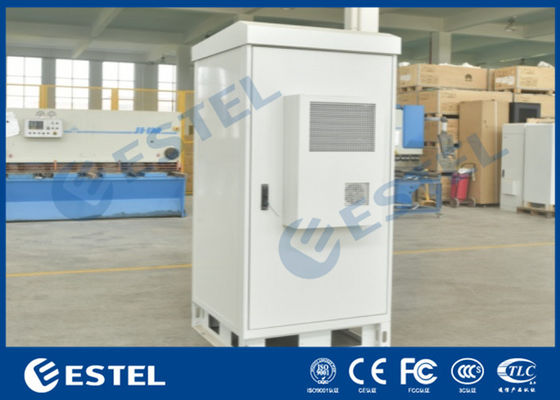

Front Access Outdoor Electrical Cabinets And Enclosures Galvanized Steel Single Wall 40U
Basic Properties
Place of Origin:
Shenzhen, China (Mainland)
Brand Name:
ESTEL
Certification:
ISO9001, CE, 3C, FCC, TLC, IP55
Model Number:
121100921050003
Trading Properties
Minimum Order Quantity:
1 set
Price:
358-2143 usd
Payment Terms:
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability:
5,000 sets per month
Product Summary
Single Wall 40U Outdoor Telecom Cabinet Galvanized Steel Front Access Floor Mounting Type 1. Cabinet Specifications External Size W*D*H 1000*900*2100mm. Material Galvanized steel,single wall,with thermal insulation. Cabinet Layout One compartment for installing 19” equipment Component The whole ...
Product Details
Highlight:
telecom equipment cabinet
,outdoor telecom enclosure
External Size:
W*D*H 1000*900*2100mm
Material:
Galvanized, Single Wall With Insulation
Cabinet Lock:
Anti-theft Three Point Lock(support Padlock)
Cable Inlets:
From Cabinet Bottom
Mounting Type:
Floor Mount
Cooling System:
Air Conditioner And Fan
Certificates:
CE
Protection Level:
IP55
Cabinet:
Outdoor Telecom Cabinet
Cabinet:
Outdoor Telecom Cabinet
Product Description
Single Wall 40U Outdoor Telecom Cabinet Galvanized Steel Front Access Floor Mounting Type
1. Cabinet Specifications
| External Size | W*D*H 1000*900*2100mm. |
| Material | Galvanized steel,single wall,with thermal insulation. |
|
Cabinet Layout |
One compartment for installing 19” equipment |
| Component | The whole cabinet is composed of three parts:top cover,cabinet body and base.The installation method is floor mounnted. |
| Protection Level | IP55 |
| Cabinet Inlets | From cabinet bottom |
| Illumination/lighting | DC48V LED lamp |
| Heat Insulation | PEF |
| Grounding Protection | Copper bar |
| Color | Light Grey |
| Air conditioner |
Cooling Capacity:1500W Power Supply: 220VAC,50Hz |
| Fan | -48VAC,temperature adjustable |
| Accessories Options | PDU, Environment monitoring system |
| Alarm sensors | The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type | With 1 front door |
| Cabinet Lock | Anti-theft three point lock(support padlock) |
| Package | Wooden case with pallets |
| Certificates | CE |
2. Cabinet Application
- Environmental monitoring
- CCTV and security systems
- Base station
- Mobile & Radio, 3G 4G 5G, Tetra, Microwave
- Telecommunication
- Internet service providers
3. Cabinet Mounting Type
- Floor standing by base
4.Cooling System Pictures
The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continous operation.It supports RS485 communication and can be connected with customers' system.
- Cooling Capacity:1500W
- Power Supply: 220VAC,50Hz
