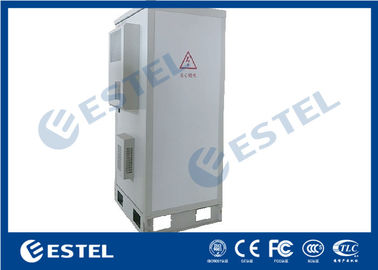

Floor Mounting Type Outdoor Electronic Equipment Enclosures With Oil Engine Interface
Product Details
telecom equipment cabinet
,outdoor telecom enclosure
Floor Mounting Type Outdoor Telecom Cabinet Galvanized Steel With Oil Engine Interface
1. Cabinet Overview
-
External dimensions:W*D*H 1000*800*1800mm or customized size.
-
Outdoor cabinet suitable for a variety of outdoor environments.
-
IP degree: IP55,IP65
-
Variety material optional:Galvanized sheet,Stainless Steel,Aluminum
-
Variety cooling options to choose,Fans,Air condition,Heat exchange
-
Floor mounting,wall mounting,pole mounting.
-
Accept customized product.
-
Various sensors,power distribution box, environment Monitoring unit,battery,etc,Optional.
-
With oil socket from the side of the cabinet botom
2.Product Specification
| Certification | CE |
| Structure | One compartment |
| Cabins | Outdoor telecom cabinets |
| Material | Galvanized sheet,double wall. |
| Doors | 1 Front door |
| Door lock | Anti-theft door lock |
| Oil engine interface | 1 oil engine socket installed inside of the cabinet |
| Cable inlet | Cable entry holes are at the bottom of the cabinet |
| Heat insulation | Optional |
| Battery installation | 2 battery layers |
| Thickness | Outer panel adopt 1.5mm,internal panel adopt 1.0mm. |
| Dimension | 1800H*1000W*800D mm |
| Cooling method |
220AC air conditioner cooling system |
| Surface treatment |
Painting,plasma electrostatic painting,hot galvanized,powder coating, polishing,brushing,etc. |
| Mounting method | Floor mounting type |
| Optional accessories |
The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| IP degree | IP55 |
| Color | RAL7035 |
| Package | Wooden case with pallets |
| Working Temperature | -20~+55ºC |
| Storage Temperature | -40~+65ºC |
3. Cabinet Application
-
Satellite Communication
-
Wireless Backhaul
-
Cable Television
-
Navigation & Positioning
-
Military Installation
-
Port Security

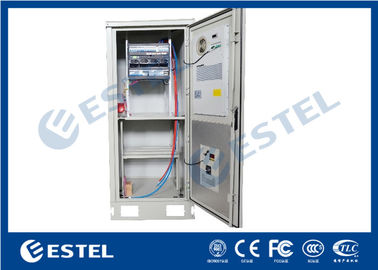

4. Equipment Installation
5. Oil Engine Interface
-
