Three Compartment Outdoor Telecom Cabinet 1000W Cooling Capacity Air Conditioners


Three Compartment Outdoor Telecom Cabinet With Three 1000W Cooling Capacity Air Conditioners

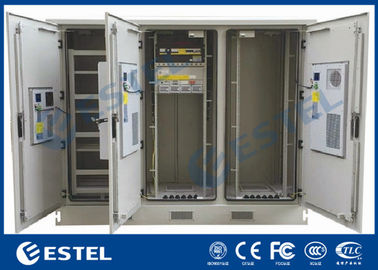

1. Cabinet Instructions


• Three compartment outdoor telecom cabinet is 2100mm High and 2400mm Wide and 900mm Deep. It comes with 2 Sets of standard 19″  racking rails and 1 set of battery racking rail.
• Standard Racking Hub that will allow you side by side.This three compartment cabinet are the ultimate choice for outdoor racking requirements.
• For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options.
• It provides a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions.
• It provides a secure,climate controlled environment for any electronic equipment.


2. Cabinet Application


• Trailer-based Communications
• Wireless/Broadband

• Fiber Optics

• Base Station

• Small Cell/DAS

• Utility - Traffic


3. Cabinet Features


• Gray color or customized color
• External dimentions is W*D*H 2400*900*2100mm
• Top cover, shades cabinet from the sun.
• Galvanized steel,double wall with heat insulation
• Zinc Die Powder-coated
• Three front doors,with anti-theft three point lock
• Individual cable entry holes from bottom of the cabinet
• IP65 protection level
• 2 sets of adjustable 19″ racking rails
• 4-6 battery layers
• Cooling system uses air conditioners
• The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional
• Flame retardant comply with GB5169.7 test A
• CE certificates
• Floor mounting type
• Package:Wooden case

4. Cooling System

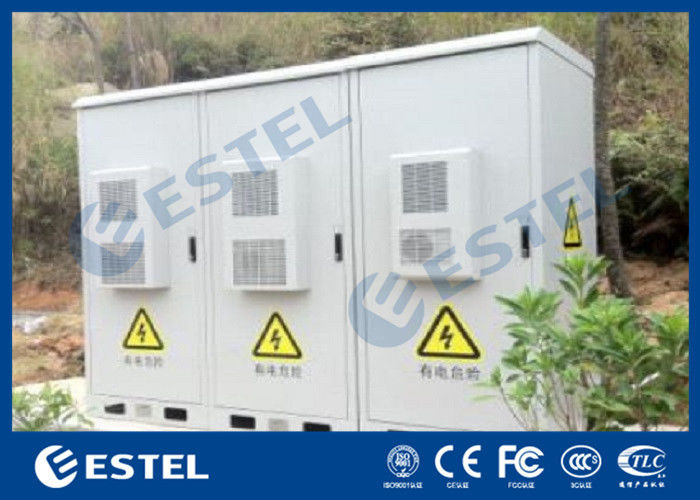

220VAC Air Conditioner, 3 pcs , installing on the 3 front doors.

The air conditioner uses utility power input, allowing wide voltage range (±30%), with high energy efficiency ratio. The air conditioner controller is digital display temperature controller, with easy operation and straight display. The controller has 6 relay outputs, which respectively control internal circulation fans, external circulation fans, cooling compressor, heater, hydrogen exhaust fan and a reserve output way. The controller has fault detection and alarm function and can transmit fault alarm signals to monitoring center. The air conditioner integrated universal intelligent controller, supporting 7×24 hours continuous operation.

5. Cabinet Iternal Instruction


5.1 Anti-loose threaded connection

• Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
• Door hings use inner hinge mode.


5.2 Cable Entry Holes

There are entrance holes individually for feeder cable and other external cables
.
