IP55 Waterproof Corrosion Resistance Stainless Steel Outdoor Telecom Cabinet
1. Cabinet Overview
This series cabinet is made of 304 Stainless steel. The outdoor telecom cabinet is Waterproof, dustproof, and corrosion resistance,provides flexible size options, offers the ideal enclosure solution to build the whole base station inside. The cabinets system can support Electrical equipments, Mornitoring system and etc.
2. Cabinet Specifications
(The dimension based on customer request
|2||Material||304 Stainless steel|
|3||StructureStructure:||The insulation material is 20mm PEF|
|4||Cooling system||AC220V air conditioner|
|5||Heat Insulation||There are heat insulation on the outer wall.|
|6||Alarm Sensors||Water sensor, Door sensor, Smoke sensor, Temperature sensor and Humidity sensor|
|7||Lamp||DC48V LED lamp|
|9||Flame retardance||Comply with GB5169.7 test A|
Working Temperature:-40°C ~ +55°C
Storage Temperature:-50°C ~ + 70°C
Transport Temperature:-50°C ~ +70°C
|11||Package||Wooden case with pallets|
3. Cabinet Features

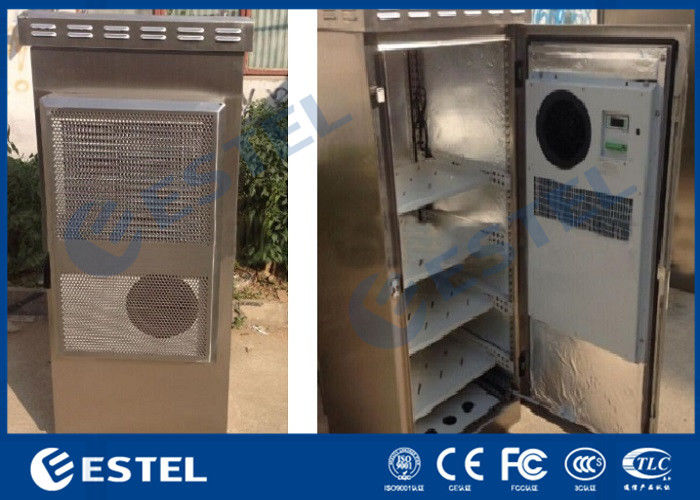

3.1 External Dimension is W*D*H 650*650*1600mm
3.2 304 Stainless steel Material
3.3 Anti-theft three point lock
3.4 The cabinet includes 19” standard installation rack.
3.5 The cabinet cooling uses air conditioner
3.6 Including -48VDC illumination lamp.
3.7 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
3.8 The insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
3.9 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
3.10 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
3.11 CE certificate
3.12 IP55 protection level.
4. Cabinet Applications
304 Stainless Outdoor Power Cabinet is mainly used in wireless communication base station, such as 4G/5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
5. Components Installation
5.1 LED lamp, smoke sensor and door sensor are installed at the top of the cabinet.
5.2 Air Conditioner is installed on the door of the cabinet.
6. Cable Inlet
Feeder cable and other external cables all use bottom wiring method.
7. Grounding Protection
7.1The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
7.2The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
7.3Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
8. Cabint Quality Control Introduction
Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process.
The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification.
Our quality inspection team, is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.
9. Leading Time
Usually about 15-20 days. The exact lead time need to be confirmed according to the quantity of order.
