| Place of Origin | Shenzhen, China (Mainland) |
| Brand Name | ESTEL |
| Certification | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number | 131090918050005 |
Galvanized Steel Outdoor Telecom Enclosure 1.5mm Thickness 19'' Easy Installation
1. Product Overview
ESTEL outdoor enclosure product range offers a modular multi bay, multi height, multi depth product with the flexibility to house a broad range of equipment in a variety of industry standard mounting formats.
With a robust construction, coupled with a variety of vandal resistant features, the ESTEL outdoor enclosure product range provides a cost-effective solution for all your outdoor equipment protection needs.
The ESTEL intelligent thermal management system minimises the maintenance frequency of the enclosure, prolongs the life of the air filter and thus reduces the whole life cost of the enclosure. There are two heat management options available for light and heavy duty, which can be interchanged for an upgrade retrofit for enclosure future proofing.
Our enclosures are supplied fully assembled ready for immediate deployment.
2. Product Key Features
Range of widths (1, 2 & 3 bays) heights and depths with option for an end pod for housing power distribution equipment
IP ratings up to IP65
Construction materials: galvanized steel.
19 inch rack equipment mounting options
Intelligent thermal management system including: air conditioners and fans
Vandal resistant features including: 3-point locking, stainless steel hinges
Range of 19” rack mountable accessories
Various lock and handle options
AC/DC power distribution and backup options
Equipment mounting backboard
Heater kit for humidity control
Sensors and alarms for door opening, overheating and fan failure
Equipment shelves
Battery and cable trays
Fibre management: splice trays, patch panels
Air Conditioners
Heat Exchangers
Other standard RAL colours available
3. Product Applications
Passive and active optical networks
Mobile & Radio, 3G 4G 5G, Tetra, Microwave
Urban and rural fibre deployment
New build home developments
Trackside and roadside
Internet service providers
Edge computing & IoT hubs
Environmental monitoring
CCTV and security systems
4. Product Parameters
| External Size | W*D*H 900*900*1800mm. |
| Material | Galvanized steel with thermal insulation. |
|
Cabinet Layout |
One compartment for installing 19” equipment |
| Component | The whole cabinet is composed of three parts:top cover,cabinet body and base.The installation method is floor mounnted. |
| Protection Level | IP55 |
| Cabinet Inlets | From cabinet bottom |
| Illumination/lighting | DC48V LED lamp |
| Heat Insulation | PEF |
| Grounding Protection | Copper bar |
| Color | Light Grey |
| Air conditioner |
Cooling Capacity:1500W Power Supply: 220VAC,50Hz |
| Accessories Options | PDU, Environment monitoring system |
| Alarm sensors | The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type | With 1 front door |
| Cabinet Lock | Anti-theft three point lock(support padlock) |
| Package | Wooden case with pallets |
| Certificates | CE |

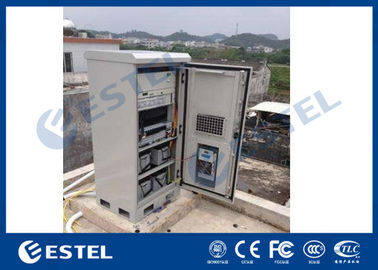

5.Cabinet Pictures
6. Cabinet Applications
