Product Details:
Payment & Shipping Terms:
|
| Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) | Cooling System: | AC220V Air Conditioner And DC48V Fan |
|---|---|---|---|
| Protection Level: | IP55 | External Size: | 900mm×900mm×2100mm(H×W×D) |
| Material: | 1.2mm Thick Galvanized Steel, Single Wall, With 20mm PEF Heat Insulation | Package: | Wooden Case With Pallets |
| High Light: | telecom equipment cabinet,outdoor telecom enclosure |
||
Integrated outdoor telecom cabinet Customized Solutions For Different Applications
1. Product Overview
Integrated Outdoor cabinet offers standard 19” racking rails, is a new design to build the whole base station inside. These cabinets have provision of floor mounting, wall mounting, pole mounting. This series cabinets offer all the protection needed for outdoor requirements. Ultimate security is provided by a three-point locking system. The cabinets system can support Electrical equipments, PDU, Backup batteries, Mornitoring system,DCDU and etc.
2. Product Specifications
| External Size | W*D*H 900*900*2100mm |
| Structure | Double wall with insulation |
| Cabinet Layout | One compartment with 19” rack inside |
| Material | Galvanized steel |
| Protection Level | IP55 |
| Cabinet Inlets | From cabinet bottom |
| Illumination/lighting | DC48V LED lamp |
| Heat Insulation | PEF |
| Grounding Protection | Copper bar |
| Color | Grey (support custom made) |
| Cooling System | AC220V Air Conditioner and DC48V Fan |
| Coating | Anti-corrosion outdoor powder coating |
| Accessories Options | PDU, Environment monitoring system,Embedded power system, Battery,ODF,DCDU optional |
| Switching Mode Power Supply | Available upon request |
| Alarm sensors | The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type | With one front door |
| Cabinet Lock | Anti-theft three point lock for outdoor cabinet (support padlock). |
| Package | Wooden case with pallets |
| Certificates | CE |
| Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | |
| Transport Temperature: -50°C ~ +70°C |
3. High Performance Cooling
The pre-engineered advantages are combined with highly efficient & dynamic cooling systems that maintain critical electronic and communications equipment within optimum operational conditions. This maximises uptime and ensures the reliability of equipment and services, reducing the costs associated with the servicing or replacement of prematurely failed components and equipment.
A range of cooling capacities are available, including high performance systems which are rated to cope with very low or very high ambient temperatures. Specially engineered cooling systems for coastal deployments, offer marinised protection against the effects of salt corrosion.
This universal design draws on forty years of global experience in supporting critical infrastructure projects in challenging deployments, environments and extreme conditions.

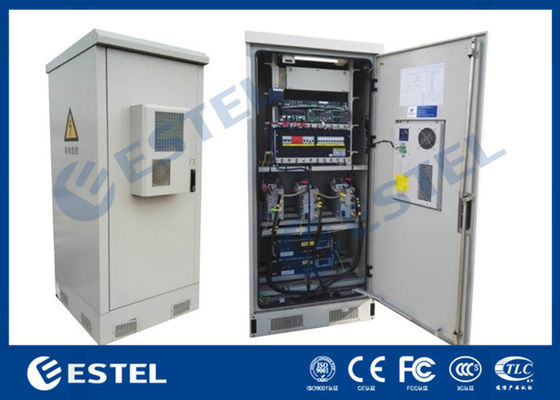

4. Product Internal Pictures
