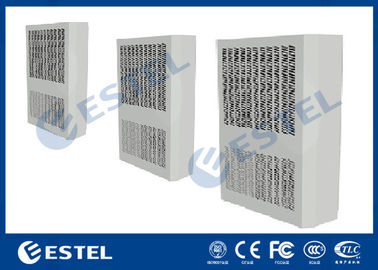

Door Mounted R134A Refrigerant Heat Exchanger 48VDC 120W/K IP55 ISO9001 Approval
Basic Properties
Place of Origin:
Shenzhen, China (Mainland)
Brand Name:
ESTEL
Certification:
ISO9001, CE, 3C, FCC, TLC, IP55
Model Number:
EWD0120
Trading Properties
Minimum Order Quantity:
1 set
Price:
286-1143 usd
Payment Terms:
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability:
8,000 sets per month
Product Summary
48VDC 120W/K Enclosure Heat Exchanger IP55 R134A Refrigerant Embeded Mounting 1.Key Parameters Type Parameters Dimensions(Without flange) H*W*D 960*405*226mm Dimensions(With flange) H*W*D 994*436*226mm Installation environment Outdoor Mounting method Door mounted Working temperature -40℃ -55 ℃ Input ...
Product Details
Highlight:
cabinet heat exchanger
,fan heat exchanger
Mounting Method:
Embeded
Input Voltage:
48VDC
Cooling Capacity l35/l35:
120W/K
Ingress Protection:
IP55
Certificates:
CE
Refrigerant:
R134A
Product Description
48VDC 120W/K Enclosure Heat Exchanger IP55 R134A Refrigerant Embeded Mounting
1.Key Parameters
| Type | Parameters |
| Dimensions(Without flange) | H*W*D 960*405*226mm |
| Dimensions(With flange) | H*W*D 994*436*226mm |
| Installation environment | Outdoor |
| Mounting method | Door mounted |
| Working temperature | -40℃ -55 ℃ |
| Input voltage | 48VDC |
| Cooling capacity L35/L35 | 120W/K |
|
Rated Refrigerating input power(L35/L35) |
174W |
| Rated Refrigerating current (L35/L35) | 3.7A |
| Internal airflow | 950 m3/h |
| IP grade | IP 55 |
| Refrigerant | R134a |
| Noise | 70 dB(A) |
| Weight | 27Kg |
2. Key Features
- It has the characteristics of low noise, anti fouling and IP55 protection;
- Industrial parts of famous brands are adopted, with high reliability;
- Fast man-machine interface operation, real-time temperature display, automatic and accurate temperature control;
- Multi function alarm output and RS485 communication function
- Working environment range: - 40 ~ + 55 ℃;
4. Applications of Products
