Three Bay Racking Outdoor Telecom Cabinet Base Station Floor Mount CE Certificated

Three Bay Racking Outdoor Telecom Cabinet Base Station Floor Mount CE Certificated

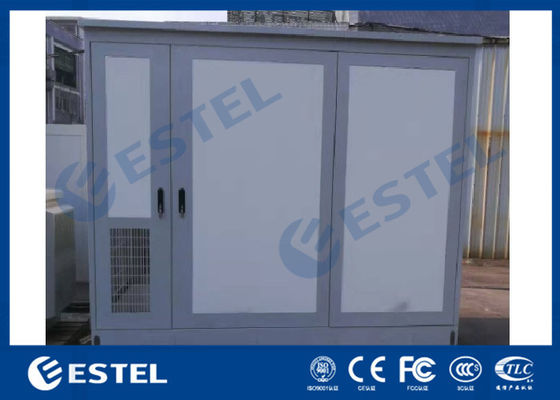

1. Cabinet Overview

This three compartment base station cabinet is the ultimate choice for outdoor racking requirements.It provides a secure,climate controlled environment for any electronic equipment. Being made of galnarized steel,it’s strong enough to rack even the heaviest equipment.It comes with three sets of standard 19 inch racking rails. For those who need more than just standard enclosure, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions.

2. Cabinet Features

• White color
• External dimentions is W*D*H 2400*1000*1800mm
• Galvanized steel doble wall with heat insulation
• Top cover, shades cabinet from the sun
• Zinc Die Powder-coated
• Anti-theft three point lock
• Individual cable entry holes from bottom of the cabinet
• Three front doors
• 3 sets of adjustable 19″ racking rails
• Cooling system uses 2800W air conditioner.
• The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional
• Flame retardant comply with GB5169.7 test A
• CE certificates
• Floor mounting type
• IP55 protection level
• Package:Wooden case with pallets

3. Base Station Cabinet Application Types

• Telecommunications
• Base station
• Trailer-based communications
• Fiber Optics
• Military

4. Cabinet Internal Racks

There are 19" equipment racks inside the cabinet.

5. Connection and fastening

• Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
• Door hings use inner hinge mode.
