| Material: | Steel, Double Wall With Insulation | Door Type: | With One Front Door And One Back Door |
|---|---|---|---|
| Environment Monitoring Unit: | 1U, DC48V | Power Distribution Unit: | Grade B Lightning Proof |
| Alarm Sensors: | Water Sensor, Smoke Sensor, Temperature And Humidity Sensor ,Shock Sensor ,Door Sensor | Ingress Protection: | IP55 |
| Temperature Control: | Air Conditioners And Fans | Package: | Wooden Case With Pallets |
| High Light: | outdoor communication cabinets,outdoor telecom enclosure,Communication Cabinets With Two Doors |
||

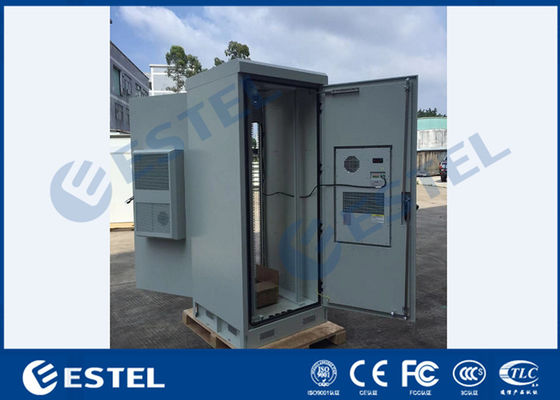

IP55 Outdoor Telecom Equipment Cabinet with Two Doors , Air Conditioner , PDU
1. Cabinet Application
The ET9090210-EQ-2 Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
2.Cabinet Product details
| Items | Technical Parameter |
| Dimension |
External Dimension: W×D×H 900×900×2100mm Internal Dimension: W×D×H 800×800×1800mm (19” 40U) |
| Layout | 1 compartment |
| Equipment Installation Method | 19” rack |
| Doors | With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock). |
| Material | Steel, double wall with insulation |
| Ingress Protection | IP55 |
| Temperature Control | Air conditioners and fans |
| Lighting | 48V LED lamps |
| Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | |
| Transport Temperature: -50°C ~ +70°C | |
| Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| Environment Monitoring Unit | 1U, DC48V |
| Alarm sensors | Water sensor Smoke sensor Temperature and Humidity sensor Shock sensor Door sensor |
| Power Distribution Unit | Grade B Lightning Proof |
| Package | Wooden Case with pallets |
3. Cabinet Key features
(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling system: air conditioners and fans
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
(5)Protection grade :IP55.
(6) Security design: Embedded doors, embedded hinges, 3-point security locks.
4. Grounding Protection
(1)The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2)The metal part of the cabinet should be interconnected and be connected with grounding bar.
(3)Connection resistance between any two points is lower than 0.1Ω.
(4)Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
5. Components Installation
(1) LED lamp, smoke sensor and door sensor are installed at the top of the cabinet.
Environment Monitoring Unit and PDU are installed on 19” rack.
(2) Air Conditioner and fans are installed on the door of the cabinet.
6. Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
