Waterproof Single Wall Outdoor Wall Mounted Cabinet With Batttery Rectifier System
Summary
● The outdoor communication cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
Features
●Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● High-performance cooling solution
● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
● Perfect air duct design to avoid cold and hot gas mixed flow effectively
● Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor and tilt & shock sensor are for option
● Professional outdoor anti- corrosion powder coating, strong weather resistance
Technics
● The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.
Configuration | Item | Technical Parameter |
Cabinet Body | Model | ET703570W-S |
Size | External Size: 700mm×350mm×700mm(W×D×H) | |
Component | The whole cabinet is composed of three parts: top cover and cabinet body and base. The installation method is foor mount and wall mount.. | |
Material | Galvanized steel, single wall, 1.5mm thickness | |
Structure |
|
|
Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
Color | Outdoor polyester light grey RAL 7035 coating or custom made | |
Ingress Protection | IP55 | |
Working Temperature | -40°C~+75°C | |
Power System | Rectifier System |
GPE4860, DC48V(1 to 2 30A rectifier module for option) Height: 1U |
Power Distribution Unit |
Grade B Lightning Proof AC Input: 63A/2P *1; DC Output: 16A/1P*3; Including one socket Height: 3U |
|
Battery |
Lithium Iron Phosphate Battery |
Option1: DC48V, 100AH, 1PCS (Medium cabinet) Option 2: DC48V, 30AH, 1PCS (Small cabinet) |
Cooling Method | Compressor Air Conditioner | / |
Heat Exchanger | / | |
TEC Air Conditioner | / | |
Fan | DC48V, 2PCS | |
Monitoring | Monitoring Unit | / |
Smoke Sensor | / | |
Vibration Sensor | / | |
Water Sensor | / | |
Door Sensor | / | |
Temperature & Humidity Sensor | / | |
Other | / | |
Other | Illumination | / |

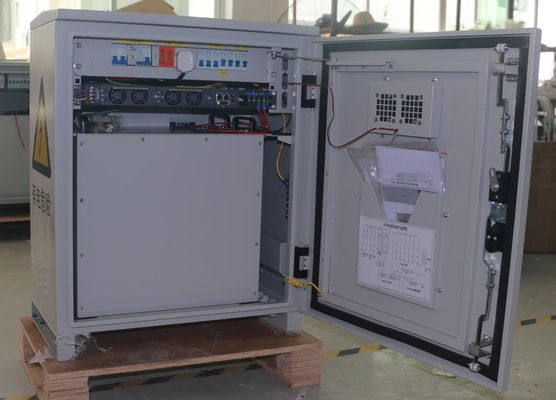

Cabinet Pictures:
