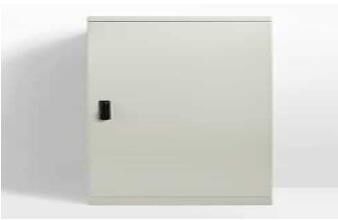

Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount

Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount
Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount

Large Image :  Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET604060-EQ
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Wooden Case with Pallet
Delivery Time: 15 to 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000PCS per month
Detailed Product Description
Application: Harsh Environment Protection: IP66
Material: Galvanized Steel, Single Wall Internal Structure: 12U 19 Inch Rack
Installation Mode: Floor Mount Lock: Anti-theft Three-point Outdoor Cabinet Lock
Surface Finish: Anti-corrosion Grey Polyester Outdoor Powder Coating
High Light:

telecom equipment cabinet

,

outdoor telecom enclosure

,

IP66 Outdoor Telecom Cabinet

12U IP66 Steel Outdoor Telecom Cabinet /Enclosure/ Small Box Polyester Powder-Coated





Application and standard



IP Enclosures 19” Racks are designed for heavy duty outdoor applications to house sensitive data network equipment in harsh environments. They are suitable for internal and external installations.

Protection: Complies with IP66









Specification Description



Rack Unit Size: 12RU

Outer size: 600H x 600W x 400D





Material:

- Enclosure Body: 1.5mm galvanised steel sheet

- Enclosure Door: 1.5mm galvanised steel sheet

- 19” Rails: 1.5mm galvanised steel sheet

- Enclosure Seal: Polyurethane



Body: The robust monoblock body is 1.5mm galvanised steel sheet. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. A galvanised steel gland plate is also incorporated into the bottom face.



Door: single door, the surface mounted door is 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening. Each door contains integral cable management rail studs . The cable management rails are removable to provide more space for control components.



Seal: A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).



Lock: 3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.



Gland Plate: Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners.



Surface Treatment: outdoor polyester powder-coated with a textured finish.

- Colour: RAL7035

(Other colours available upon request).







Size Drawing

Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount 0

Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount 1

Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount 2






Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount 3Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount 4

Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount 5Steel 12U IP66 Outdoor Telecom Cabinet Enclosure Polyester Powder Coated Floor Mount 6
