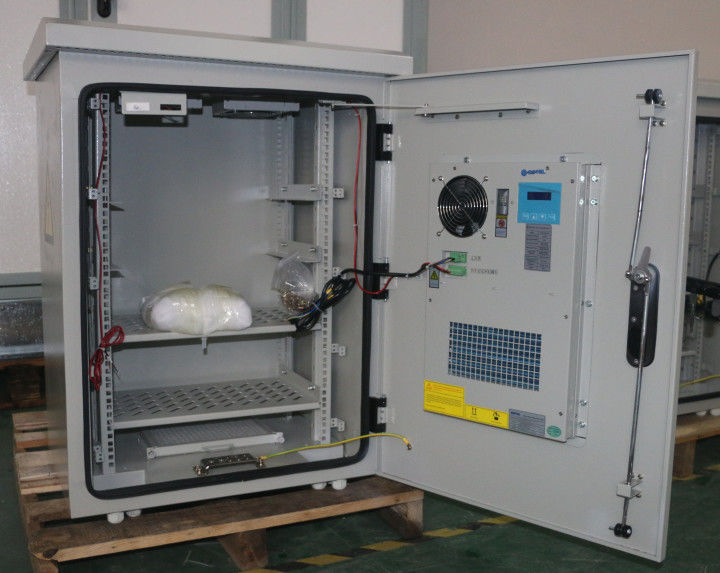

Single Wall Heat Insulated 15U Pole Mount Cabinet Thermostatic Box With Peltier Cooler
Product Details
outdoor pole mount enclosure
,outdoor electronics cabinet
,15U Pole Mount Cabinet
Single Wall Heat Insulated 15U Pole Mount Enclosure With Peltier Cooler / Thermostatic Outdoor Box
Cabinet Specs:
(1)External Dimension H×W×D 800×600×650mm
(2) One compartment, including 15U 19" installation rack from up to down
(3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; single wall with heat insulation: 1.5mm outer plate +20mm inner heat insulation
(5) Installation method: pole mount, including pole mount accessory
(6) Cooling: TEC Air Conditioner, DC48V 200W ; 1 pcs
(7) Illumination: DC48V LED lamp
(8) Door sensors, 2 pcs, one is used for door open alarm, the other one is used for controlling LED lamp on/off
(9) Installation mode: pole mount
Size Drawing:
Other Technical Parameters
| Item | Type | Technical Parameter |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature | Temperature | Working Temperature: -20°C ~ 55°C |
| Storage Temperature: -40°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
