Product Details:
Payment & Shipping Terms:
|
| Install Method: | Pole Mounted | Inner Structure: | Upper Side Is 9U 19” Mounting Rail, Lower Part Is For Installing Batteries |
|---|---|---|---|
| Cooling: | 500W, 110VAC 60Hz Air Conditioner | Material: | Galvanized Steel |
| Steel Structure: | Double Wall With Insulation | Protection: | IP55 |
| External Size: | 1300mm×800mm×610mm(H×W×D) | Installation Method: | Pole Mount |
| Highlight: | outdoor pole mount enclosure,outdoor electronics cabinet |
||
Anti Corrosion Powder Coating Pole Mount Cabinet With 19 Inch Rack Battery Shelf
Summary
The outdoor communication cabinet refers to a cabinet made of metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
Features
Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● High-performance cooling solution
● Triangular type lock
● Professional outdoor anti- corrosion powder coating, strong weather resistance
Technics
The cabinet material is high quality steel plate, made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET8061130P |
| Size | External Size: 1300mm×800mm×610mm(H×W×D) | |
| Component | The whole cabinet is composed of two parts: top cover and cabinet body. The installation method is pole mounted. Include pole mounting accessories. | |
| Material | Steel, double wall with insulation. | |
| Structure |
(1) One front door, hidden hinge (2) Outdoor special triangular type lock, with key (3) Door stopper / wind lock is installed on the inside of the cabinet door (4) Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof (5) Cabinet upper side is 9U 19” mounting rail, lower part is for installing batteries (6) Equipped with cable manager (7) Cable inlets at the bottom of cabinet |
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Outdoor polyester light grey RAL 7035 coating | |
| Ingress Protection | NEMA 4X | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Air Conditioner | 500W, 110VAC 60Hz |
| Power Supply | PDU | 2U Din Rail Panel |
| Other | Illumination | LED light, 48VDC |
Dimension Diagram

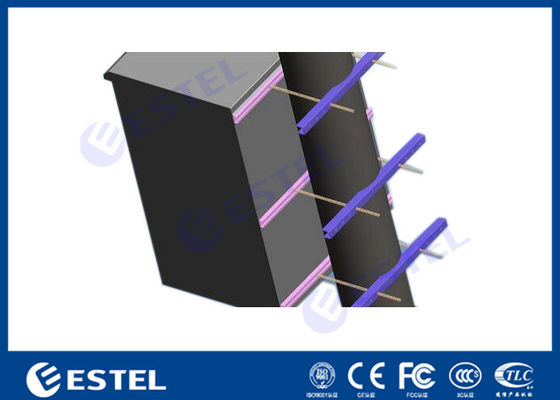

Installation Diagram
Cabinet Pictures
