Two Bay Outdoor Power Cabinet With High Strength Anti-theft Design Air Conditioner Cooling
1. Application
The ET14890200 Two Bay Outdoor Power Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
2. Features
(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: fans and air conditioner. (Other cooling option: heat exchanger).
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 1460×900×2000mm |
| Layout | One compartment, two bays. For each bay, the upper part is 9U19" installation rail,lower part is 3 battery shelves. | |
| Equipment Installation Method | 19” rack and battery shelf | |
| Door | With two front doors, and anti-theft lock for outdoor cabinet. | |
| Material | Single wall, 1.5mm thick galvanized steel; with heat insulation. | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | air conditioner and fans |
| Lighting | LED lamp | 48VDC LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC | External Dimension: W×D×H 1460×900×2000mm |
| 2 | Air Conditioner | 2 | PC |
(1) Power Supply: DC48V; (2) Cooling Capacity:1000W; (3) Variable frequency; (4) One air conditioner installed on left door, the other installed on right door. (5) Including controller to interchange between air conditioner 1 and air conditioner 2. When Aircon 1 is running Aircon 2 will be at rest. On the next run aircon 2 will run and aircon 1 be at rest. The Aircon will only run when the temperatures are too high for FAN cooling. |
| 3 | Fan | 2 | PC | DC48V, 50W. temperature adjustable. Installed at the top of the cabinet door. One on the left door and the other on the right door. |
| 4 | Smoke Sensor | 2 | PC | |
| 5 | Door Sensor | 2 | PC | |
| 6 | LED Lamp | 2 | PC | DC48V |
| 7 | LED Lamp Switch | 2 | PC | For controlling LED lamp on/off |
| 8 | Package | 1 | PC | Wooden Case |
5. Cabinet Dimension

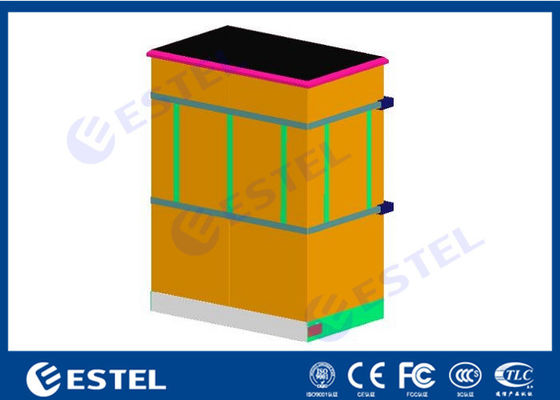

External Dimension: W×D×H 1460×900×2000mm
6. Cabinet Layout
7. Gold Belt Anti-theft Design
High strength steel structure, anti pry and anti shear
Bolt connection and protection to increase the difficulty of prying and shearing
Lock protection to avoid damage to lock
Ingenious structure, can protect the cabinet lock demolitions
The difficulty of cabinet theft is greatly increased
