IP55 22U Outdoor Communication Cabinets Single Layer With Front / Back Door
  • IP55 22U Outdoor Communication Cabinets Single Layer With Front / Back Door
  • IP55 22U Outdoor Communication Cabinets Single Layer With Front / Back Door
  • IP55 22U Outdoor Communication Cabinets Single Layer With Front / Back Door
  • IP55 22U Outdoor Communication Cabinets Single Layer With Front / Back Door

IP55 22U Outdoor Communication Cabinets Single Layer With Front / Back Door

Place of Origin China
Brand Name ESTEL
Certification ISO9001
Model Number ET6787102-EQ-2D
Product Details
Door:
Two Doors, One Front Door And One Back Door
Equipment Installation:
Standard 19" Rack
Protection:
IP55,Waterproof, Sunproof And Rainproof, Anti-corrosion, Durable
Inner Space:
22U
Coating:
Anti Corrosion Powder Coating
Cooling:
Fan
Light:
-48VDC
Size:
670*870*1028mm(W*D*H)
High Light:

outdoor communication cabinets

,

telecom equipment cabinet

Payment & Shipping Terms
Minimum Order Quantity
1PC
Packaging Details
Wooden Case
Delivery Time
20 woking days
Payment Terms
T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability
2000PCS per month
Product Description



22U IP55 Single Layer Custom Made Outdoor Telecom Cabinet With Front Door Back Door





Overview



The outdoor cabinets are widely used for Telecom, Power, Electricity and so on, in 4G and coming 5G, smaller size outdoor cabinet will be more and more used to substitute the shelter of the Base Station, also used for the broadband and optical fiber hub. We provide the Outdoor Cabinet, and solution integrated with temperature controlling, power supply, monitoring systems and so on, customized with enough discussion with customers, the users only need to put main equipment inside.





Feature



1. Solid structure with high quality materials;

2. Customized solution design;

3. High protection level IP55, IP65

4. Single layer structure, for outdoor application;

5. Waterproof, sunproof and rainproof, anti-corrosion, durable;

6. Temperature controlling and good cooling solution,options: air conditioner, heat exchanger or fan ;

7. Scratch-proof surface with outdoor powder coating on demand;

8. Easy installation and maintenance;

9. The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.

10. All the cables used in the cabinet are made from flame retardant materials.







Basic Parameter



Dimension

670*870*1028mm(W*D*H)

Space Capacity

18U

Structure

Single compartment, single layer structure, two doors, one front door and one rear door

Material

High quality cold rolled steel

Cooling Way

Fan cooling Type,total 2 fans, one for each door

Color

RAL7035 powder coating

Installation

Floor/Ground Mounting

Protection Level

IP55

Accessories

LED lamp and switch, temperature controller

Application

Communication base station





Working Condition



Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2





Pictures

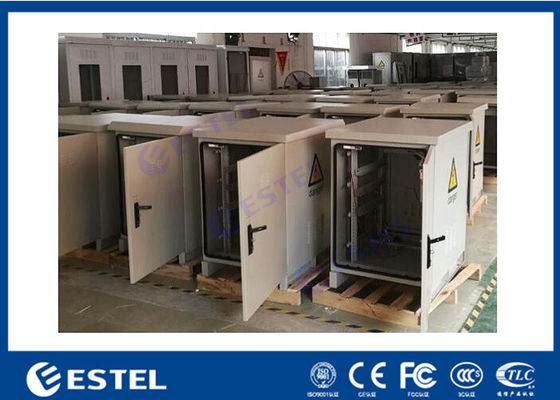

IP55 22U Outdoor Communication Cabinets Single Layer With Front / Back Door 0

IP55 22U Outdoor Communication Cabinets Single Layer With Front / Back Door 1

IP55 22U Outdoor Communication Cabinets Single Layer With Front / Back Door 2
