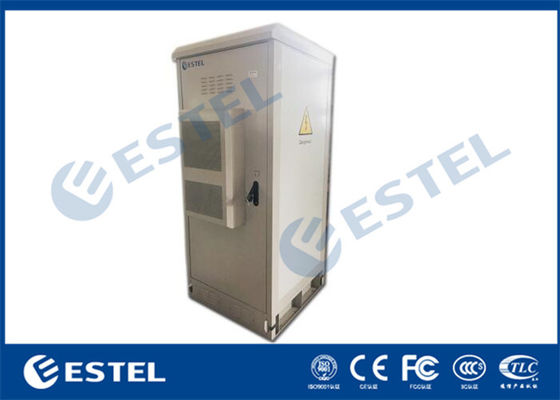

EMS PDU Outdoor Telecom Cabinet 19'' 40U IP55 Galvanized Steel With Air Conditioner
Product Details
outdoor communication cabinets
,telecom equipment cabinet
,Outdoor Telecom Cabinet 19''
Outdoor Telecom Cabinet
ET9090210-EQ-1D (19” 40U)
Introduction
The outdoor communication cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
We have solution with a rich variety of accessories to provide a complete solution. Our customers can select from a standard quality cabinet to a fully integrated smart rack that is equipped with power, cooling, locking systems and environmental monitoring.
The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
Features
● IP55 rating (Optional IP65 available upon request). The outdoor telecom cabinet is vandal proof, withstand dust and sand storms.
● Multiple cooling options: fan, air conditioner, heat exchanger etc.
● Double walls with thermal insulation.
● With one front door, convenient for maintenance and access
● Anti-theft 3-point lock mechanism, support padlock
● 40RU 19” rail
● Anti-corrosion powder coating
● Cable entry from cabinet bottom
Specifications
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET9090210-EQ-1D |
| Size | External Size: 2100mm×900mm×900mm(H×W×D) | |
| Component | The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted. | |
| Material | Galvanized steel, sandwich structure panel, with thermal insulation | |
| Structure |
● Double wall, with insulation ● One front door ● Anti-theft three-point lock ● Door stopper / wind lock is installed on the inside of the cabinet door ● Door with good sealing, waterproof and dustproof ● Include standard 19“ rack inside the cabinet, high compatibility. ● Equipped with cable manager ● Cable inlets at the bottom of cabinet |
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Light grey | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Air Conditioner |
Cooling Capacity: 1500W Power Supply: 220VAC, 50Hz |
| Heat Exchanger | Optional | |
| Fan | -48VDC, temperature adjustable | |
| Power Supply | PDU |
Grade B lightning proof; AC Input: 63A/2PX1; AC Output: 16A/1PX4; DC Output: 16A/1PX4. PDU can be custom made |
| Monitoring | Environment Monitoring Unit |
-48VDC Communication port: RS485, TCP/IP, SNMP optional |
| Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. | |
| Tilt & Shock Sensor | Monitor vibration of cabinet and provide real time alarm. | |
| Water Sensor | Monitor water status inside cabinet and provide real time alarm. | |
| Door Sensor | Monitor door open status inside cabinet and provide real time alarm. | |
| Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real time alarm. | |
| Other | Illumination | LED light, -48VDC |
Dimension Diagram
