Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Steel,double Wall | Door: | One Front Door |
|---|---|---|---|
| Cooling: | Air Conditioner And Fan | Feature1: | Good Waterproof |
| Feature2: | Good Anti-theft | Equipment Installation Method: | 48U 19" Rack |
| High Light: | outdoor communication cabinets,telecom equipment cabinet,Anti Theft Outdoor Equipment Enclosure |
||
48U Outdoor Telecom Equipment Cabinet With Anti-theft Lock Cover Temperature Control Double Wall Steel Cabinet
1. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W×D×H 900×900×2400mm Internal Dimension: W×D×H 800×800×48U |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft four point lock for outdoor cabinet. | |
| Material | Steel, sandwich structure, double wall with insulation. | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | air conditioner and fans |
| Lighting | LED lamp | 48VDC LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
2. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC |
External Dimension: W×D×H 900×900×2400mm Internal Dimension: W×D×H 800×800×48U |
| 2 | Air Conditioner | 1 | PC |
Cooling capacity: 2KW, Power Supply: AC220V, 50Hz. |
| 3 | Fan | 2 | PC | DC48V |
| 4 | Environment Monitoring Unit | 1 | PC | 1U, DC48V, include SNMP communication port |
| 5 | Water Sensor | 1 | PC | |
| 6 | Smoke Sensor | 1 | PC | |
| 7 | Temperature and Humidity Sensor | 1 | PC | |
| 8 | Door Sensor | 1 | PC | |
| 9 | Tilt & Shock Sensor | 1 | PC | |
| 10 | LED Lamp | 1 | PC | DC48V |
| 11 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 12 | Power Distribution Unit | 1 | PC |
Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 50Hz |
| 13 | Package | 1 | PC | Wooden Case |
3. Cabinet Dimension
External Dimension: W×D×H 900×900×2400mm
Internal Dimension: W×D×H 800×800× 48U
4. Application Field
Used in wireless communication base station:
(1) 4G system;
(2) Communication/network integrated service;
(3) Access/transmission switching station;
(4) Emergency communication/transmission, etc.
5. Features
(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: fans and air conditioner. (Other cooling option: heat exchanger).
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.

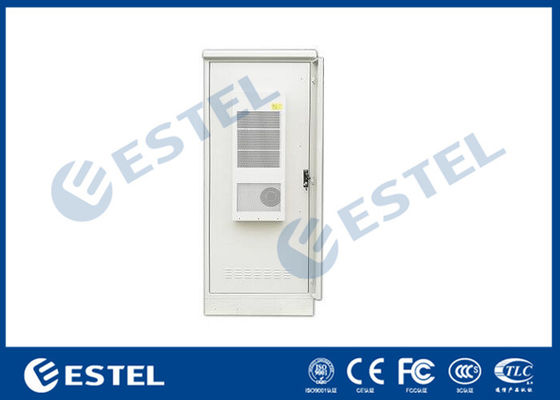

6. Cabinet Picture
