19 " Electric Outdoor Telecom Cabinet With Heat Exchanger Cooling Double Layer
  • 19
  • 19
  • 19

19 " Electric Outdoor Telecom Cabinet With Heat Exchanger Cooling Double Layer

Place of Origin China
Brand Name ESTEL
Certification ISO9001, 3C, IP65 etc
Model Number ET6555180-EQ
Product Details
External Size:
H×W×D :1800×650×550mm
Material:
Galvanized Steel; Double Walls, Thickness Of Outer Plate: 1.5mm, Thickness Of Inner Plate: 0.8mm, With Heat Insulation Between Two Walls
Cooling:
DC48V 80W/K Heat Exchanger
Accessory:
Door Sensor, Smoke Sensor, Water Sensor, LED Lamp
Door:
One Door, Including Anti-theft Outdoor Special Lock
Height:
1800mm
High Light:

outdoor communication cabinets

,

telecom equipment cabinet

Payment & Shipping Terms
Minimum Order Quantity
1PC
Packaging Details
Wooden Case
Delivery Time
15 to 20 days
Payment Terms
T/T, L/C, Western Union, Paypal
Supply Ability
1200PCS per month
Product Description

19" Electric Outdoor Telecom Cabinet With Heat Exchanger Cooling Double Layer Metal Sheet



1. Cabinet Size

External Size H×W×D :1800×650×550mm



2. Cabinet Material

The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.



3. Cabinet Structure

The cabinet includes 19” equipment installation rack. The cabinet includes one air conditioner or heat exchanger and fans, installed on front door.



4. Cabinet Door and Lock

The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.





5. Cabinet Cooling



One DC48V 80W/K heat exchanger





6. IP Grade



IP55/IP65





7. Working Condition



Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2

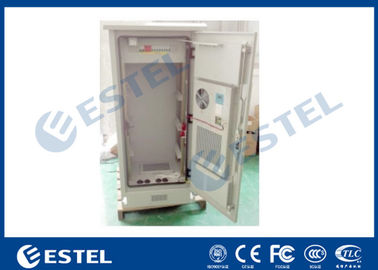

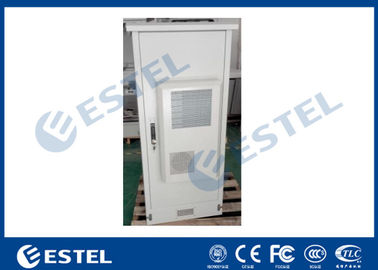

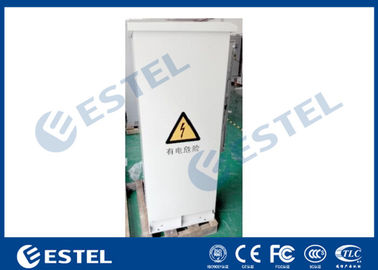

8. Picture



19 " Electric Outdoor Telecom Cabinet  With Heat Exchanger Cooling Double Layer 019 " Electric Outdoor Telecom Cabinet  With Heat Exchanger Cooling Double Layer 1







9. Our Factory



19 " Electric Outdoor Telecom Cabinet  With Heat Exchanger Cooling Double Layer 2
