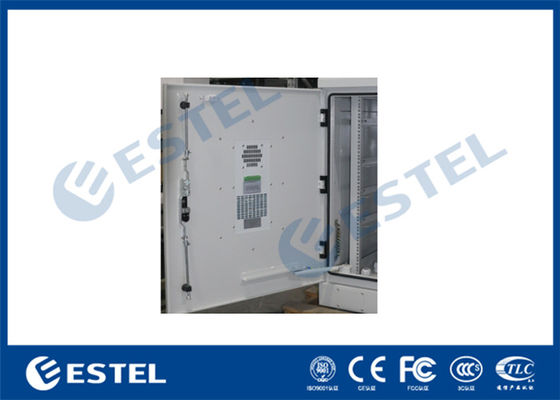

17U Aluminum Material Outdoor Telecom Cabinet With 300W 24VDC Air Conditioner
Product Details
outdoor communication cabinets
,outdoor telecom enclosure
,Aluminum Material Outdoor Telecom Cabinet
IP55 19" 17U Aluminum Outdoor Telecom Cabinet, with 300W 24VDC Air Conditioner
Summary
● Outdoor telecom cabinets are the ideal way of storing and protecting equipment at remote telecom sites. These outdoor telecom equipment cabinets come in different styles and sizes, but all have the same general purpose: to protect valuable equipments from natural elements, and vandalism. Many accessory items can be added to enhance functionality including HVAC, power distribution panels, environment monitoring system, bases, trays and cable entry solutions. ESTEL can make a truly customized solution.
Features
● Aluminum cabinet with much lighter weight than steel cabinet, easier for transport and install
● Super anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
● Perfect air duct design to avoid cold and hot gas mixed flow effectively
● Professional outdoor anti- corrosion powder coating, strong weather resistance
● High heat isolation performance
● High reliability cooling devices with 24VDC input
Specification
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET7075100AL |
| Size | External Size: 1000×700×750mm(H×W×D) | |
| Equipment Installation | Standard 19” rack, 17U | |
| Material | Aluminum, double walls, with insulation. | |
| Door | One front door | |
| Cable Inlet | At the bottom of cabinet | |
| Coating | Outdoor polyester light grey RAL 7035 coating | |
| Protection | IP55 | |
| Working Temperature | -40°C～+75°C | |
| Cooling Mode | Compressor Air Conditioner | 24VDC 300W |
| Heat Exchanger | Optional | |
| TEC Air Conditioner | Optional | |
| Fan | Optional | |
| Monitoring | Monitoring Unit | Optional |
| Smoke Sensor | Monitor the smoke status inside the cabinet and provide real time alarm. | |
| Vibration Sensor | Optional | |
| Water Sensor | Optional | |
| Door Sensor | When unauthorized opened, provide real-time alarm. | |
| Temperature & Humidity Sensor | Optional | |
| Other | Optional | |
| Other | Illumination | LED light, 24VDC |
Dimension Diagram
Pictures
-
