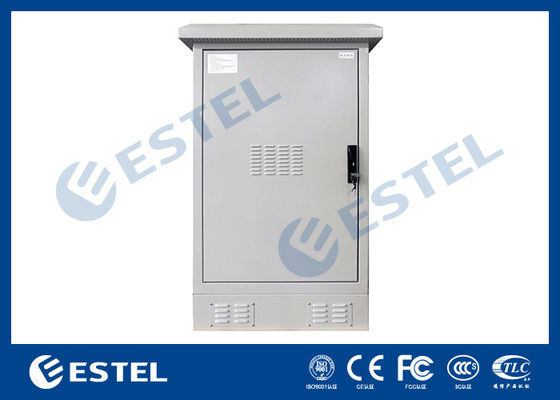

Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station

Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station
Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station

Large Image :  Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET7272130-S
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Wooden Case
Delivery Time: 20 to 25 days
Payment Terms: L/C, T/T
Supply Ability: 1000PCS per month
Detailed Product Description
Material: Galvanized Steel Door: One Front Door
Cooling: Fan Feature1: Waterproof
Feature2: Fan Cooling Feature3: Door Switch
High Light:

telecom equipment cabinet

,

outdoor telecom enclosure

,

Telecom Cabinets with Smoke Sensor



The cabinet is a single (galvanized and coated with polyester powder paint for ultimate protection) skinned outdoor enclosure for mounting on base assembly. It is designed with adapters to fit 19” equipment. The cabinet accommodates a dust and water protection rating of IP55. The cable entry is located at the bottom left of the cabinet by means of cable gland plates and cable tie brackets.





Thermal specification



Various options,

• Fan and filter



Fan with below fan specs

• Fan voltage 48Vdc

• Fan speed control Temp. Regulated

• Fans specification 48Vdc / 100W / IP44

• Fan can be mounted on the door or at cabinet top







Outdoor Cabinet for Solar Power Station, 19" 23U, IP55, Waterproof, Fan Cooling, Smoke Sensor, Door Switch, LED Lamp

Rail Specification



Construction: Galvanized Steel

Mounting: 19” mount – from top to bottom of the cabinet





Door Specification



Cabinet to have one front door





Cabinet Construction



Skin Material: 1.5mm (0.06”) thick electro-galvanized steel (corrosion-resistant)

Frame Material: galvanized steel

Powder-Coat Paint: outdoor polyester light gray RAL 7035 coating

The cabinet have a removable top. The purpose of this is for solar protection, hiding lifting ears and additional water protection.





Miscellaneous Specifications and Options

• Cable Entry: Bottom Cable Access

• Ground Bar

• Plinth Foot Print (154mm)

• Lifting Ears 4 lifting ears located under top cover





Other electrical devices



Service Light

The purpose of this kit is to get additional light inside the cabinet. Service Light is 48VDC.



Smoke Detector

A smoke detector is an optional device that detects smoke and issues an alarm to alert that there is a potential fire in the cabinet (Alarm should is normally open when triggered)



Door switch

This kit provides the cabinet with a door switch (Magnetic contact) that triggers alarm when the door is opened. (Alarm is normally open when triggered)







Cabinet Dimension



1300H x 720mmW x 720mmD



Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station 0



Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station 1



Pictures



Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station 2



Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station 3





Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station 4



Waterproof Telecom Cabinets Outdoor Smoke Sensor For Solar Power Station 5
