Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station

Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station
Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station

Large Image :  Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: CCC, CE, ISO, TUV, RoHS
Model Number: E3P-22K-A1-32A-EU01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden case with pallets
Delivery Time: 40 DAYS
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 3,000 sets per month
Detailed Product Description
Type: EV Charging Station Protection level: IP54
Communication: Ethernet Or WiFi Installation method: Wall-mounted Type Or Pile Type
Charging gun: 1 Gun Output power: 22 KW
Output current: 32A Output voltage: 3-phase 400V
Highlight:

22kw Electric Car Charging Pile

,

Single-Gun Electric Car Charging Pile

,

32A 22kw EV Charging Station

Outdoors New Energy Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw AC EV Charger Pile





Outdoors New Energy Electric Car Charging Pile Floor Mounted Single-Gun 22kw AC Product overview



The AC charger is in compliance with SAE J1772, IEC 62196, GB/T20234.

The communication protocol with central management system (CMS) is in compliance with OCPP 1.6 based on ARM architecture and Linux / Android platform.



Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station 0





Outdoors New Energy Electric Car Charging Pile Floor Mounted Single-Gun 22kw AC Specification



Item Specification E3P-22K-A1-32A-EU01
Input Input voltage 3-phase 400V
Input current 32A
Input frequency 50/60Hz
Output Output voltage 3-phase 400V
Output power 22 kW
Output current 32A
Profile Charging gun 1 gun (European type 2)
Installation method Wall-mounted Type
or Stand Type
Cable length 5m
Operating temperature -30 ° C ~ +50 ° C
Storage temperature -40 ° C ~ +70 ° C
Working humidity 5%~95%
Communication WiFi
Protection level IP54
Safety standard IEC 61851-1:2017
Interface protocol OCPP 1.6
Emergency Stop Yes
CE certificated Yes
Security design Over/under voltage protection, overload protection, short circuit protection, current leakage protection, grounding protection, over temp protection, lightning surge protection, topple & fall down protection



Outdoors New Energy Electric Car Charging Pile Floor Mounted Single-Gun 22kw AC Features



  • Delicate appearance, simple operation, convenient installation;
  • High efficiency, reliable and stable performance;
  • Friendly interaction interface
  • Support multiple modes of charging, operation management and payment;
  • Support Ethernet/WIFI telecommunication;
  • Support RFID Card/OCPP 1.6J (optional);
  • Support Type-2/Type-1/ GB/T connector (or Socket) optional.





Applicable Scenes



They are suitable for occasions such as city special charging stations that provide charging for bus, taxi, public service vehicles, sanitation vehicles, logistics vehicles, etc.; city public charging stations that provide charging for private cars, commuter, bus; intercity highway charging stations and other occasions that need special AC fast charging.

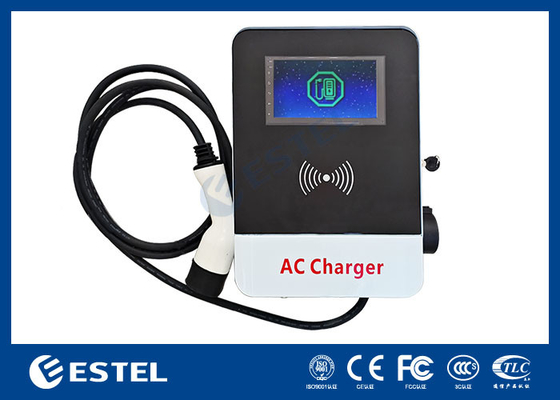

Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station 1



Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station 2



Detailed Photos

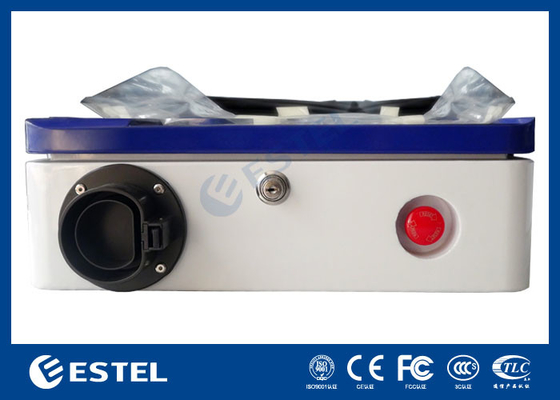

Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station 3

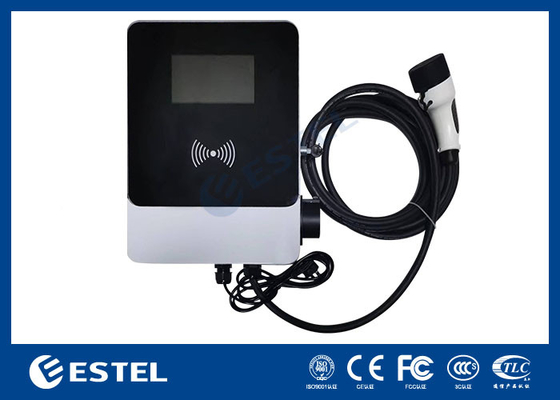

Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station 4

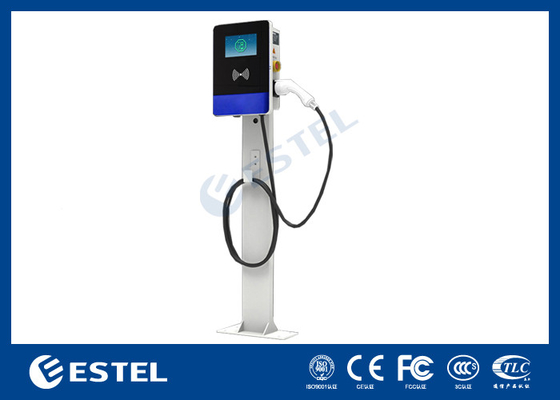

Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station 5



PROJECT CASE PRESENTATION

Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station 6



Outdoor Electric Car Charging Pile Floor Mounted Single-Gun 32A 22kw EV Charging Station 7
