3Phase CE Fast Charging EV Charger 25kW 50A DC With 2 Guns Wall Mounted
Basic Properties
Place of Origin:
Shenzhen, China (Mainland)
Brand Name:
ESTEL
Certification:
CCC, CE, ISO, TUV, RoHS
Model Number:
E3P-25K-D2-50A-CE01
Trading Properties
Minimum Order Quantity:
1
Price:
358-4286 usd
Payment Terms:
L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability:
3,000 sets per month
Product Summary
EV Charger 3Phase CE 25kW 50A DC Fast Charging Of New Energy With 2 Guns Wall Mounted EV Charger 3Phase CE 25kW 50A DC Fast Charging Of New Energy Product overview The DC charger is in compliance with IEC 61851-1:2017, EN 61851-1:2010, EN61851-23:2014, EN61851-24:2014, IEC61851-21-2:2018, GB/T18487...
Product Details
Highlight:
Fast Charging EV Charger 25kW
,2 Guns EV Fast Charging Stations
,50A Fast Charging EV Charger
Power Input:
3ph / L1, L2, L3, PE
Output Power:
25kW

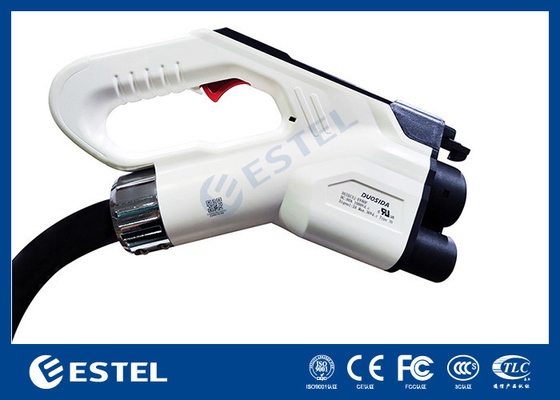

Gun:
2 Guns
Protection Level:
IP54
Display :
7” Touch Screen
Charging Cable Length:
5m
Dimension:
550*335*700mm (W*D*H)
Output Current:
50A DC
Product Description
EV Charger 3Phase CE 25kW 50A DC Fast Charging Of New Energy With 2 Guns Wall Mounted
EV Charger 3Phase CE 25kW 50A DC Fast Charging Of New Energy Product overview
The DC charger is in compliance with IEC 61851-1:2017, EN 61851-1:2010, EN61851-23:2014, EN61851-24:2014, IEC61851-21-2:2018, GB/T18487.1-2015, and the corresponding communication standards GB/T 27930-2015, GB/T 34657.1-2017, GB/T 34658-2017. The communication protocol with central management system (CMS) is in compliance with OCPP 1.6 based on ARM architecture and Linux / Android platform.
The basic design of this DC charger series is in compliance with the IEC standards.
EV Charger 3Phase CE 25kW 50A DC Fast Charging Of New Energy Technical parameters
| Item Number | 3P-25K-D2-50A-CE01 | |
|
Power input |
Input rating | AC220V 3ph Wye 70A max. |
| Number of phase / wire | 3ph / L1, L2, L3, PE | |
| Power factor | >0.98 | |
| Current THD | <5% | |
| Efficiency | >95% | |
|
Power output |
Output power | 25kW (2 gun) |
| Output rating | DC200V-750V DC | |
| Output Current | 80A DC | |
| Output accuracy | <0.5% (voltage and current) | |
| Protection | Protection | Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault |
| User interface & control | Display | 7” touch screen |
| Support language | English (Other languages available upon request) | |
| Charge option | Charge options to be provided upon request: Charge by duration, Charge by energy, Charge by fee | |
| Environmental | Operating temperature | minus 20 ℃to+55℃ (derating when over 55℃) |
| Storage temperature | -40 ℃to+70℃ | |
| Humidity | < 95% relative humidity, non-condensing | |
| Altitude | Up to 2000 m (6000 feet) | |
| Mechanical | Ingress protection | IP54 |
| Enclosure Protection against External Mechanical Impacts | IK10 according to IEC 62262 | |
| Cooling | Air forced | |
| Charging cable length | 5m | |
| Dimension (W*D*H) mm | 550*335*700mm | |
| Weight | 80kg |
EV Charger 3Phase CE 25kW 50A DC Fast Charging Of New Energy Service environment
- Operation temperature: -20⁰C...+55⁰C
- RH: 5%...95%
- Attitude: <2000m
- Installation environment: without strong magnetic interference.
- Peripheral space: >0.1m

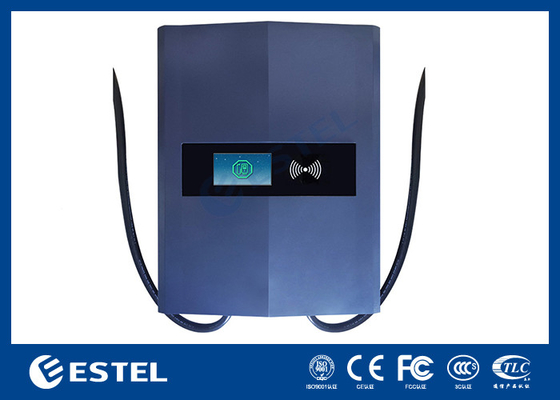

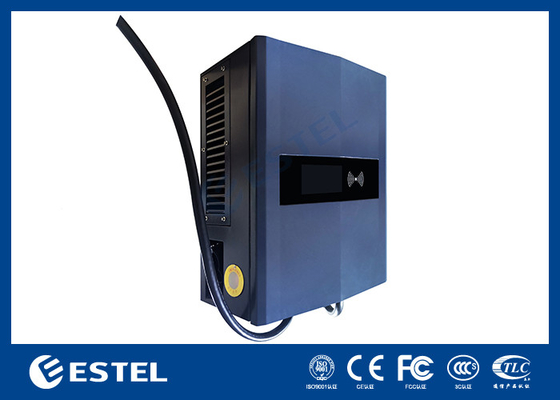

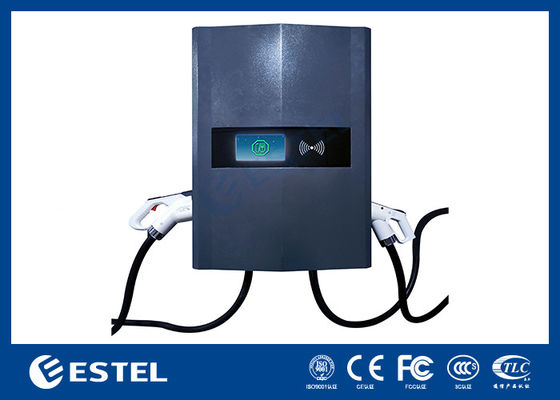

Products Detailed Photos
