Front Back Door 34U Insulated Outdoor Telecom Cabinet 19 Inch Telecommunication Enclosure
1. Specifications
(1) Technical Parameters
|
Item |
Type |
Technical Parameter |
|
Structure |
Dimension |
External Dimension H×W×D 1800×900×900mm; (19”, 34U) |
|
Layout |
1 compartment |
|
|
Equipment Installation Method |
19” rack |
|
|
Door |
With one front door and one rear door, and special anti-theft four point lock for outdoor cabinet (support padlock) |
|
|
Material |
Sandwich structure panel, galvanized steel, double wall, there is heat insulation between two walls. |
|
|
Ingress Protection |
IP55 |
|
|
Temperature Control |
Cooling |
Air conditioner, heat exchanger and fan |
|
Lighting |
LED lamp |
48V LED lamp |
|
Temperature |
Temperature |
Working Temperature: -40°C ~ +55°C |
|
|
|
Storage Temperature: -50°C ~ + 70°C |
|
|
|
Transport Temperature: -50°C ~ +70°C |
|
Humidity |
Relative Humidity |
5% ~ 100% |
|
Pressure |
Air Pressure |
62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
|
Radiation Intensity |
Solar Radiation Intensity |
1120 ×(1±5%)W/m2 |
(2) Accessories List
|
No. |
Item |
Quantity |
Unit |
Specs |
|
1 |
Outdoor Telecom Cabinet |
1 |
Set |
(1) External Dimension H×W×D 1800×900×900mm (19”, 34U) (2) One compartment,including 19” equipment rack. (3) With one front door and one rear door, and special anti-theft four point lock for outdoor cabinet (support padlock) (4) Sandwich structure panel, galvanized steel, double wall, there is heat insulation between two walls. (5) Cable inlet on the bottom (6) Including grounding copper bar (7) IP level: IP55 |
|
2 |
Air Conditioner |
1 |
Set |
Power supply: AC220V, 50HZ Cooling capacity: 1500W |
|
3 |
Heat Exchanger |
1 |
Set |
Power supply: DC48V Cooling capacity: 150W/K |
|
4 |
Auxiliary Direct Ventilation Fan |
1 |
Set |
Two DC48V fans with one temperature controller |
|
5 |
Environment Monitoring System |
1 |
Set |
1× environment monitoring unit,19”, 1U,SNMP communication, AC220V 1× smoke sensor, 1× water sensor, 1× temperature&humidity sensor, 1× door sensor, |
|
6 |
Power Distribution Unit |
|
|
Grade B Lightning Proof AC Input: 63A/2P ×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4. Height: 4U |
|
7 |
LED Lamp Switch |
1 |
PC |
Used for controlling LED lamp on/off |
|
8 |
LED Lamp |
1 |
PC |
DC48V |
|
9 |
Package |
1 |
Set |
Wooden Case |

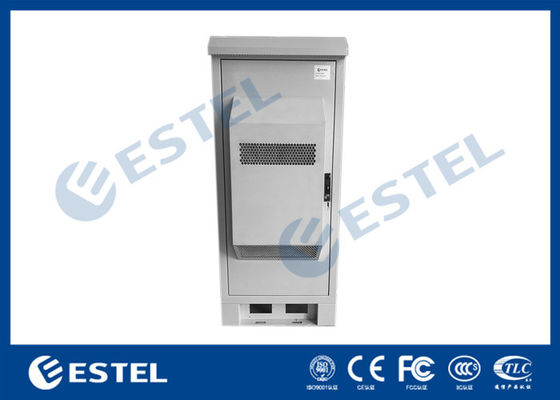

2. Cabinet Photo
3. Applications
The ET9090180-EQ-2D Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, 4G/5G system, access/transmission switching station, emergency communication/transmission, etc.
Besides, outdoor telecom cabinet is also used in other fields, such power, industry, bank, education, security monitoring, automatic system, reseach institute etc
4. Features
4.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
4.2 The cabinet adopt multiple cooling methods: air conditioner, heat exchanger and fans.
4.3 Including -48VDC illumination lamp.
4.4 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
4.5 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
4.6 The cabinet includes 19” standard rack.
4.7 Material: good quality galvanized steel
4.8 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
4.9 Ingress protection: IP55
5. Details Diagram
6. Packing
