Anti Corrosion 19 Inch Outdoor Telecom Cabinets 1200W Outdoor Battery Enclosure

Anti Corrosion 19 Inch Outdoor Telecom Cabinets 1200W Outdoor Battery Enclosure

1. Description of outdoor telecom cabinets

Outdoor telecom cabinets are designed to provide a safe solution to install telecommunications equipment in outdoor conditions. These cabinets are offering protection against different weather conditions, dust and vandalism. The cabinet is with one compartment. Using air conditioner to ensure the equipment operate normally at stable temperature range, so as to make the service life of the equipment much longer and their performance more stable.

2. Selling points and Features

· The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. -There are cable inlet individually for power cable, signal cable and optical cable.

· All the cables used in the cabinet are made from flame retardant materials.

· High integration, compact structure, easy installation and migration on later stage

· Anti-theft lock, excellent keyhole protection device

· Anti corrosion outdoor powder coating

3. Technical Parameters

4. Accessories List

5.Enclosure Cooling

1Set 1200W Air Conditioner, AC220V power supply

2 pcs DC48V fans.

6.Cabinet Structure

(1) External Dimension W×D×H 750×750×1500mm

(2) One compartment;

(3) totally two doors; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

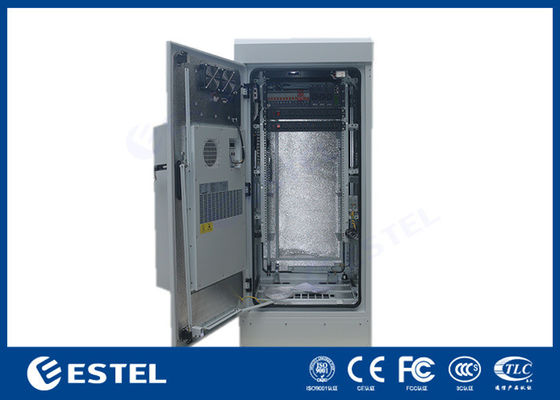

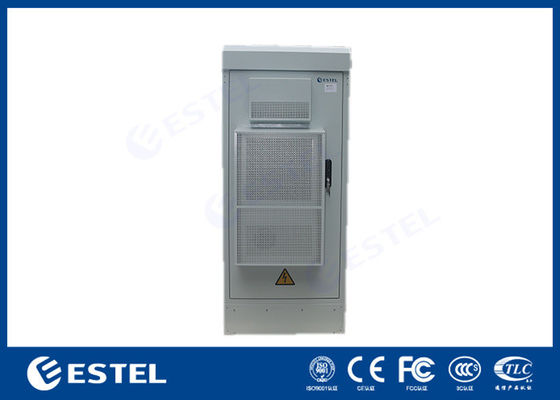

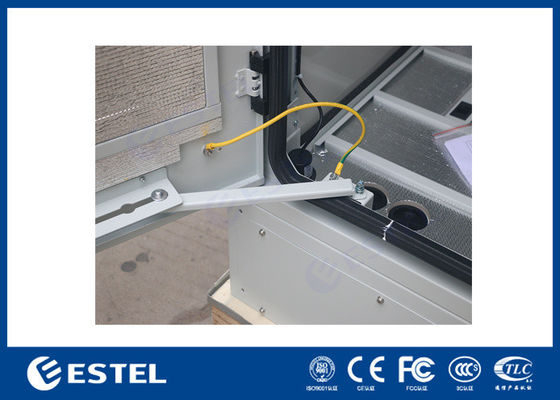

7.Cabinet Picture:

8.Cabinet Quality Control Instruction

Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process. The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification.

Our is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.

9.Estel Cabinet

FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
