19 Inch Rail IP65 Outdoor Telecom Cabinets With Air Conditioner And Fans
Product Details
19 inch Outdoor Telecom Cabinets
,IP65 Outdoor Telecom Cabinets
,19 inch outdoor network enclosure
19 Inch Rail IP65 Outdoor Telecom Cabinets With Air Conditioner And Fans
1. Application
outdoor telecom cabinets feature an IP65 rating, you can choose from floor standing or wall mount style based on your environment,all of our outdoor server racks are built to protect your expensive network equipment from exposure to the environment such as dust or water
2. Features
· Reasonable inside space application,equipments space,cabling space,battery space
· Dedicated air filter system to stop dust and rain inside cabinet during the fresh air into the cabinet
· Good quality earthing system,good lightning protection ability.
· High quality 3 points handle locks,protection level IP55-IP65
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 750×750×1750mm (32U) |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rail | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Steel, sandwich panel | |
| Ingress Protection | IP65 | |
| Temperature Control | Cooling | air conditioner and fans |
| Lighting | LED lamp | 48VDC LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC | External Dimension: W×D×H 750×750×1750mm (32U) |
| 2 | Air Conditioner | 1 | PC |
Cooling capacity: 1.5KW, Power supply: 48VDC. |
| 3 | Fan | 2 | PC | 48VDC |
| 4 | Environment Monitoring Unit | 1 | PC | 19”, 1U, support SNMP communication, 48VDC |
| 5 | Water Sensor | 1 | PC | |
| 6 | Smoke Sensor | 1 | PC | |
| 7 | Temperature and Humidity Sensor | 1 | PC | |
| 8 | Door Sensor | 1 | PC | |
| 9 | Shock Sensor | 1 | PC | |
| 10 | LED Lamp | 1 | PC | 48VDC |
| 11 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 12 | AC PDU | 1 | PC | 1U, 19“, 8 way, 10A/250VAC |
| 13 | Package | 1 | PC | Wooden Case |
5. Enclosure Cooling
Air Conditioner 1.5KW and Fans DC48V
6. Cabinet Structure
(1) External Dimension: 750×750×1750mm
(2) 1 compartment
(3) With one front door , and special lock for outdoor cabinet (support padlock) ;
(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF

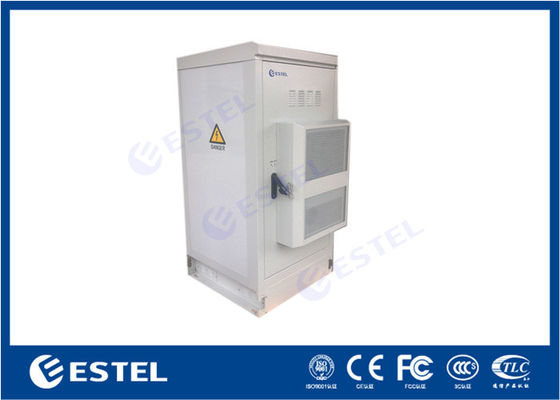

7. Cabinet Picture
8. Grounding Protection
(1) The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2) The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
(3) Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
-
