Double Wall Aluminum Outdoor Equipment Cabinet With 500W 220V Air Conditioner

1. Why need Outdoor Equipment Cabinet

The outdoor cabinet can provide the protection for the equipment. Typical equipment being housed includes Computer, DVR, CCTV, Communications, Surveillance, Switches, Routers etc. and in many cases includes power rectification and battery back-up.and in many cases includes power rectification and battery back-up. The cabinets are normally multi chambered and enables the differing facilities to be separated for security/specific thermal requirements

2. Selling points and Feature Of Outdoor Equipment Cabinet

· 19" mounting rails

· Come with plinth for mounting on the floor ground

· Available in colors, Grey, customized colors

· Cabinet design allows natural wind cooling through filtered vents on front door and venting under lip of rain hood

· All fixings are internal to the cabinet to provide a secure solution

3. Specification Of Equipment Cabinet

Cabinet And Accessories List

4. Technical Parameters

Item Technical Parameter

Working temperature range: -40℃~ +60℃

Sorage temperature range: -50℃~ +70℃

Transport temperature range: -50℃~ +70℃

Relative Humidity 5%-- 100%

Air Pressure 62kpa~ 101kpa (similar to altitude 0m ~ 5000m)

Radiation Intensity 1400* (1±5%) W/m2

5. Application Of Equipment Cabinet

Wireless communication base station

such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

6. Equipment Cabinet Structure

(1)MATERIAL:ALUMINUM

(2) STRUCTURE: DOUBLE WALL

(3) INSULATION: WITH HIGH-DENSITY FOAMING BOARDS BETWEEN THE TWO WALLS

(4) SIZE: ACCORDING TO YOUR DRAWING

7. Door and Door Lock

(1) Cabinet door options: vertical hinge door, horizontal hinge door.

(2) The door limit device can limit the door position when it is open.

(3) The door limit function is automatically activated when the door is open, and should be canceled manually when the door is closed.

8. Dimension

According to your requirements. 450x300x700 W D H

9. Grounding Protection

(1)The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

(2)The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.

(3)Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

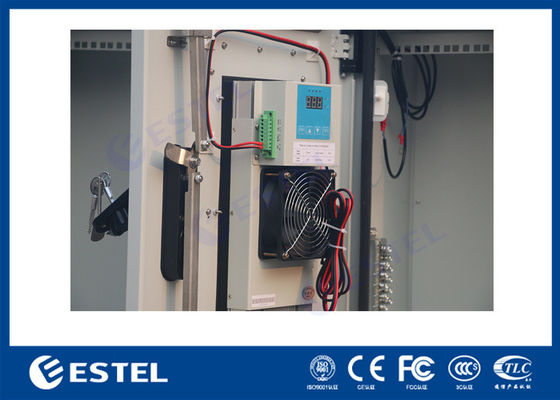

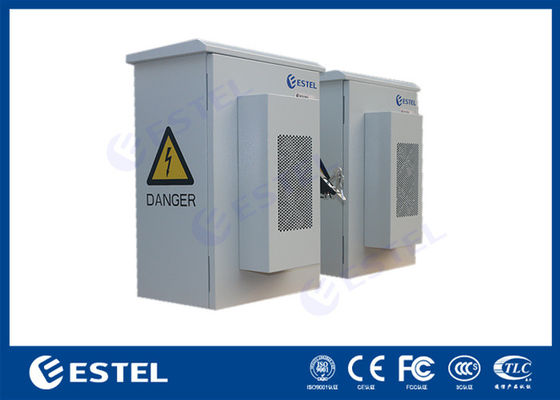

10. Cabinet Picture

11.More Cabinets

10, FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
