Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door
  • Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door
  • Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door
  • Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door
  • Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door

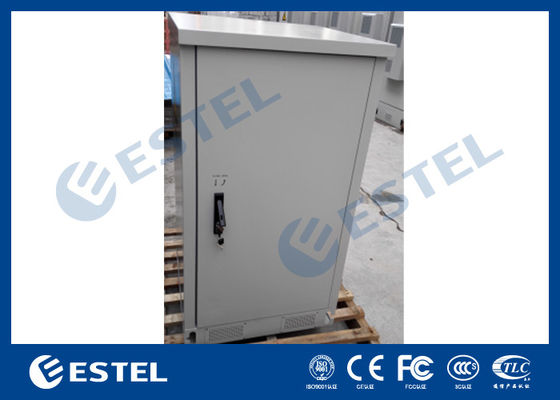

Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door

Place of Origin Shenzhen, China (Mainland)
Brand Name ESTEL
Certification ISO9001, CE, 3C, FCC, TLC, IP55
Model Number ET6565120-EQ2D
Product Details
External Dimension:
W×D×H 650×650×1200mm
Material:
Hot Dip Galvanized Steel
Color:
Anti-corrosion Outdoor Powder Coating Grey RAL7032
Protection Grade:
IP55
Grounding Protection:
Copper Bar
Cooling:
AC220V 50Hz 500W Air Conditioner And DC48V Fans
Cabinet Lock:
Anti-theft Three Point Lock
Structure:
Double Wall With Heat Insulation
Equipment Installation Method:
19" Rail And Equipment Tray
Door:
One Front Door And One Rear Door
High Light:

outdoor communication cabinets

,

outdoor telecom enclosure

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
wooden case
Delivery Time
15-20 working days
Payment Terms
T/T etc
Supply Ability
8,000 sets per month
Product Description



Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door For Base Station



Configuration List:



No. Item Quantity Unit Specs
1 Outdoor Battery Cabinet 1 Set

(1) External Dimension: H×W×D 1200×650×650mm

(2) One compartment: equipment compartment, including 19” rail and equipment tray

(3)With one front door and one back door,totally 2 doors, and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;with 20mm PEF heat insulation between two wall.

(5) Ingress Protection: IP55

2 Air Conditioner 1 Set Cooling capacity: 500W, AC220V, 50HZ;
3 Auxiliary Direct Ventilation Fans 1 PC DC48V
4 Door Sensor 2 PC Used for controlling LED lamp on/off
5 LED Lamp 2 PC 48V LED lamps (immovable), with protective circuit breaker
6 Package 1 Set Wooden Case





Environment conditions:



1. Temperature:

Working Temperature: -40°C ~ +55°C

Storage Temperature: -50°C ~ + 70°C

Transport Temperature: -50°C ~ +70°C

2. Relative Humidity: 5% ~ 100%

3. Air Pressure

4. 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

5. Solar Radiation Intensity: 1124 × (1±5%)W/m2



Packing



Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door 0

Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door 1Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door 2







Other Cabinet Project



Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door 3Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door 4Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door 5Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door 6Weather Proof Galvanized Steel Outdoor Equipment Cabinet With Front Door and Rear Door 7
