|Cabinet Layout:||One Compartment||Accessories Options:||PDU, Rectifier System, Environment Monitoring System|
|Applicaiton:||Outdoor Telecom Base Station||Structure:||Double Wall, With Insulation, Sandwich Structure.|
|Grounding Protection:||Copper Bar||Coating:||Anti-corrosion Outdoor Powder Coating|
|Illumination:||DC48V LED Lamp|
outdoor equipment cabinet,
power supply cabinet

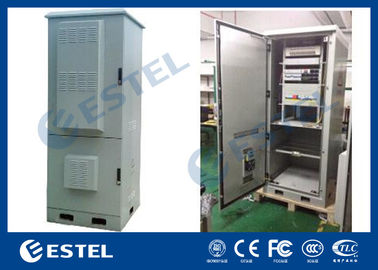

Two Compartment Outdoor Power Cabinet DDTE011 For Equipment / Batteries
|Place of Origin: Shenzhen, China (Mainland)||External Size W×D×H 800×800x1800mm|
Brand Name: ESTEL
|Structure: sandwich structure, double wall, with insulation|
Model Number: DDTE011
|Cabinet Layout:one compartment, the upper for installing 19” equipment, the lower for installing batteries|
Product Name: Outdoor Power Cabinet
|Cabinet Lock: anti-theft three point lock|
|Certification: ISO9001, CE, 3C, FCC, TLC, IP55||
Protection Level: IP55
|Application: outdoor telecom base station||Cable Entry: at cabinet bottom|
|Material: galvanized steel (support custom made)||Illumination: DC48V LED lamp|
Heat Insulation: PEF
|Grounding Protection: copper bar|
Color: grey (support custom made)
|Cooling: AC220V air conditioner and DC48V peltier air conditioner|
Coating: anti-corrosion outdoor powder coating
|Accessories Options: PDU, rectifier system, environment monitoring system|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Payment Terms:||L/C,D/A,T/T, Western Union, Paypal, etc|
|Supply Ability:||6,000 sets per month|
|Delivery Time:||15-20 working days|
|Packaging Details:||wooden case|
(1) Technical Parameters
|Structure||Dimension||External Size W×D×H 800×800x1800mm|
|Layout||One compartment: the upper for installing 19” equipment, the lower for installing batteries|
|Equipment Installation Method||19” standard rack|
|Door||With two front doors, and anti-theft three point lock for outdoor cabinet (support padlock)|
2.Double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
|Temperature Control||Cooling||AC220V air conditioner and DC48V peltier air conditioner|
|Lightning Proof||Grade B lightning proof||Nominal: 60KA, Max.: 100KA|
|Lighting||LED lamp||48V LED lamp|
|Temperature||Temperature||Working Temperature: -40°C ~ +55°C|
|Storage Temperature: -50°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1124 × (1±5%)W/m2|
|1||Outdoor Telecom Cabinet||1||Set||
(1) External Size W×D×H 800×800x1800mm
(2) One compartment, the upper for installing 19” equipment, the lower for installing batteries
(3) With two front doors, and anti-theft three point lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls
Power Supply: AC220V 50Hz
|3||Peltier air conditioner||1||PC||
Power Supply: DC48V

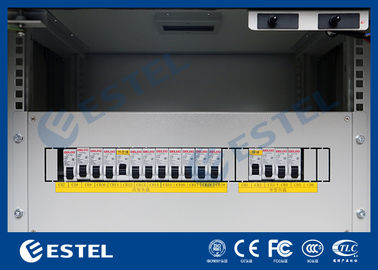

|4||Power Distribution Unit||1||Set||
Grade B Lightning Proof
AC Input: 63A/2P *1;
AC Output: 16A/1P*4;
DC Output: 16A/1P*4.
Model: GPE48120C (DC48V, 120A), with Ethernet communication port
(1) 4×30A Rectifier Module;
(2) 1× Monitoring Module;
(3) Power distribution frame.
|6||Environment Monitoring Unit||1||Set||SM2400,1U|
|7||Door Sensor||4||PC||Two for controlling LED lamp, two for open door alarm.|
|10||Temperature and Humidity Sensor||2||PC|
The DDTE011 outdoor power cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
The cabinet is made of galvanized steel, with double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.

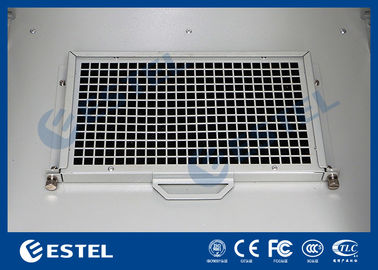

The cabinet includes 19” equipment installation rack and battery shelf. The cabinet includes one air conditioner and one peltier air conditioner, installed on front doors.
The cabinet includes two front doors. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
Three point lock
Feeder cable and other external cables all use bottom wiring method.
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
5. Cabinet Layout
6. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
