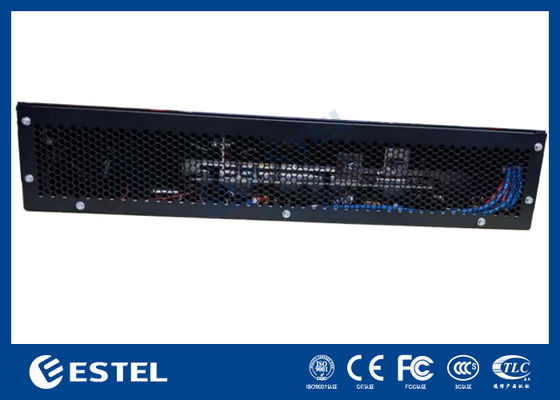

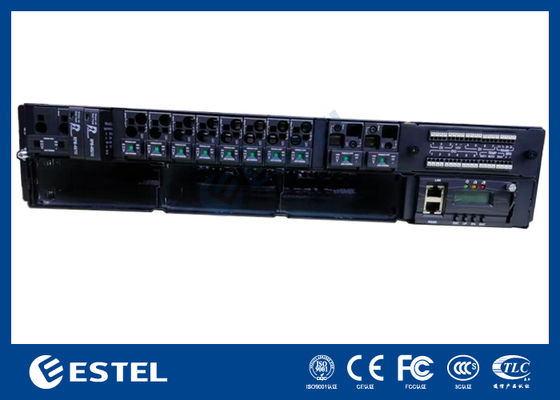

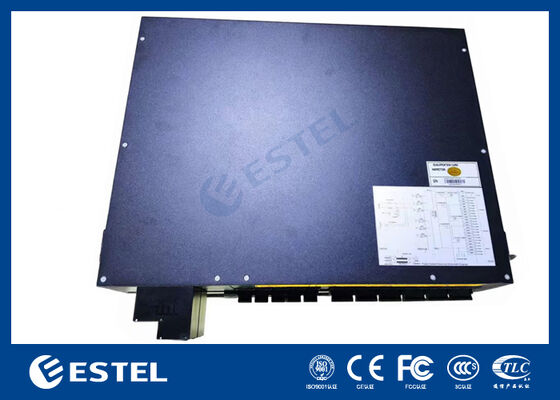

ET48150M5H32 9kW High Efficiency 2U Compact Power System for Communication Networks
Product Details
3-9kW telecom power system
,2U compact power system
,high-efficiency communication network power
ET48150M5H32 9kW High Efficiency 2U Compact Power System for Communication Networks
Product Description for 9kW High Efficiency 2U Compact Power System
The ET48150-M5H32 3-9kW Power System features a versatile 2U compact design, designed to provide reliable power for communication networks, wireless base stations, and transmission systems. With a wide input voltage range (90-300VAC) and high efficiency (>96%), it ensures smooth operation even under fluctuating power conditions. The system supports front-end operation and provides easy maintenance with hot-swappable rectifier modules and controllers. Remote monitoring via LAN, RS485, SNMP, and USB ensures that the system stays operational with minimal downtime. Ideal for use in mission-critical applications, this power system ensures stable and secure power delivery.
Key Features for 9kW High Efficiency 2U Compact Power System
2U compact design, space-saving and easy installation
Intelligent remote monitoring and maintenance via LAN, RS485, SNMP, USB
Hot-swappable rectifier and controller modules for easy online maintenance
Wide input voltage range (90-300VAC), adaptable to diverse power grids
Perfect battery management for extended battery life
High efficiency (>96%) with forced cooling
Application Scenarios for 9kW High Efficiency 2U Compact Power System
Wireless base station
Transmission network
Communication network of enterprises
Technical Specifications for 9kW High Efficiency 2U Compact Power System
| Specification | System |
| Dimension | 482.6(W) x 380.2(D) x 88(H) (2U) |
| Weight | 15kg (without rectifiers) |
| Cooling mode | Natural cooling |
| Installation mode | 19-inch rack or inside the cabinet |
| AC Input | 90-300VAC, Single-phase |
| Protection level | IP20 |
|
Specification |
AC Distribution |
| Input capacity | 63A/2P |
| Input voltage | 220VAC, Single-phase |
| AC SPD | 20kA, 40kA, 8/20μs |
| Output voltage | -42~58VDC (Nominal: -53.5VDC) |
| Maximum capacity | 9kW (3 x 3kW rectifiers) |
|
Specification |
Rectifier |
| Rated power | 3000W (176-300VAC) |
| Working temperature | -40°C to +75°C (full load below 50°C) |
| Cooling mode | Forced cooling |
| Dimension | 106.5mm(W) x 286mm(D) x 41.5mm(H) (1U) |
|
Specification |
Controller |
| Communication ports | RS485, SNMP, USB |
| Display mode | LCD |
| Operating temperature | -40°C to +75°C |
| Storage temperature | -40°C to +75°C |
| Humidity | 5% to 95% (non-condensing) |
Operating Guidelines for 9kW High Efficiency 2U Compact Power System
Install the power system in a well-ventilated area to ensure optimal performance, especially under full load.
Utilize remote monitoring features for efficient management and to prevent system downtime.
Ensure proper cable connections for AC input and battery management for secure operation.
This system is ideal for deployment in high-demand, mission-critical environments where reliable power is essential.
-
