Outdoor 19-Inch Rack Cabinet (32U) with IP65 Rating, Cooling Fans, LED Lighting, and Security Features for Telecommunications and Industrial Applications

Outdoor Cabinet (19-inch, 32U)

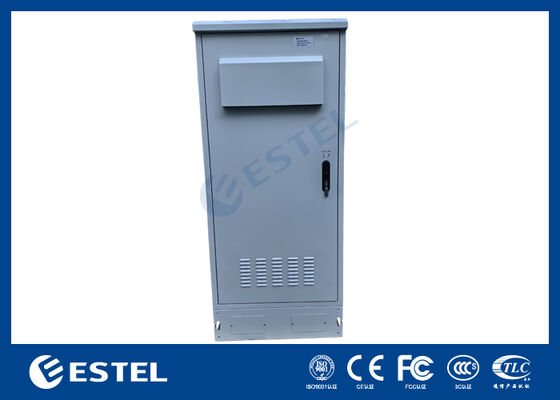

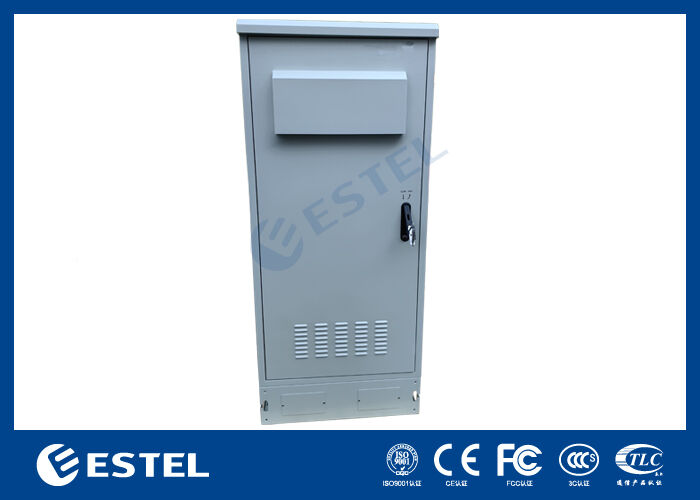

The outdoor cabinet is designed for a range of demanding applications, offering reliable storage and protection for sensitive equipment. With an external dimension of H1750mm × W750mm × D750mm, the cabinet is built to withstand harsh environmental conditions and offers ample space for a 19-inch rack setup with a 32U compartment. The cabinet's IP65 rating ensures it is dust-tight and protected against water jets from any direction, making it ideal for outdoor use in a variety of environments.

Key Features & Construction

Materials:

The cabinet is constructed from galvanized steel sheet (outer thickness: 1.2mm, inner thickness: 0.8mm) for durability and enhanced weather resistance. It also features 20mm PEF insulation to provide effective temperature control and energy efficiency.

Doors:

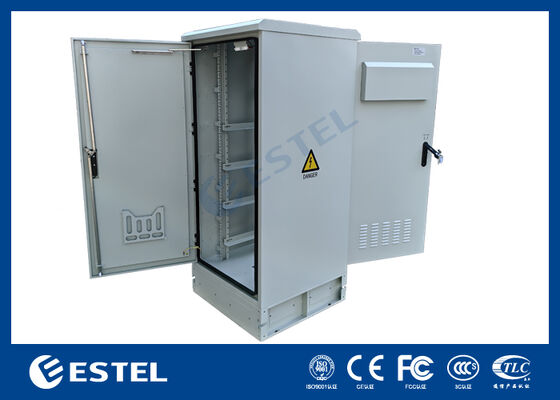

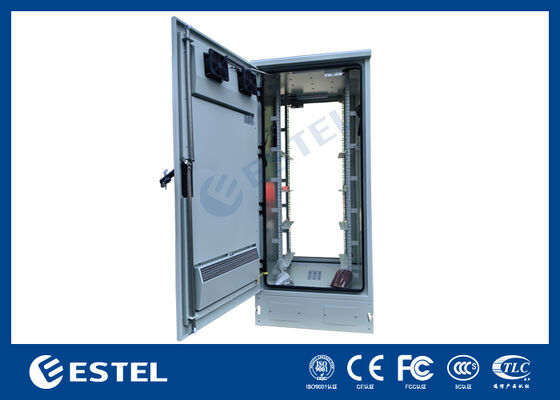

The cabinet is equipped with one front door and one rear door, both featuring a three-point lock system that ensures security and protection against theft. The doors are easy to operate and provide efficient access to the equipment inside.

Cooling:

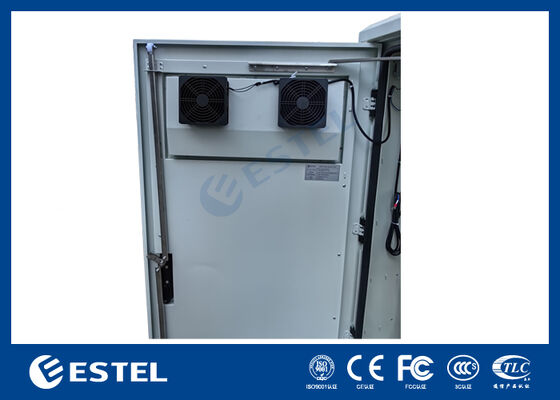

The cabinet is designed with ventilation in mind and includes two AC230V fans (50Hz), equipped with a temperature controller to regulate the internal temperature. This ensures that the components within the cabinet remain within safe operating limits even in high-heat environments.

Lighting:

For ease of access and visibility, the cabinet is also equipped with two AC230V LED lamps (50Hz), controlled by a switch, providing illumination for the interior.

Sensors:

The cabinet is fitted with two door sensors that enhance security and enable remote monitoring of the cabinet's status.

Power & Cable Management:

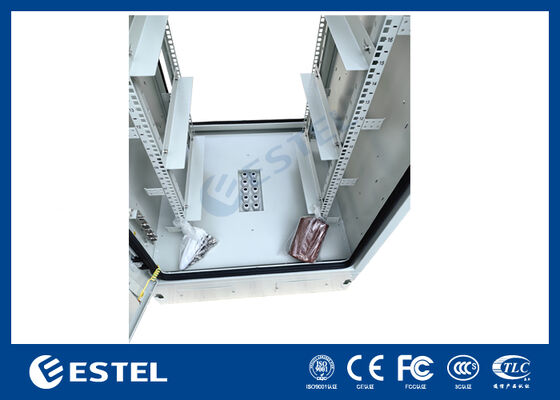

The cabinet is equipped with cable inlets for efficient cable management, with cable outlets at the bottom (size 10x22.5mm), allowing easy installation of cables for both power and data.

Applications

This robust outdoor cabinet is suitable for a variety of applications, particularly in environments where weather resistance, durability, and security are paramount. Some of the key application scenarios include:

Telecommunications Infrastructure:

Protecting critical equipment such as networking switches, routers, and other telecom devices that require a secure environment with regulated temperature control.

Outdoor Equipment Protection:

Suitable for housing electrical and electronic devices in industrial environments, public areas, or remote locations, where the cabinet needs to withstand rain, dust, and varying temperatures.

Renewable Energy Systems:

The cabinet can be used for storing power electronics such as inverters, batteries, and controllers, particularly in off-grid or solar energy applications.

Specifications

External Dimensions: 1750mm (H) × 750mm (W) × 750mm (D), including a plinth height of 200mm

Compartment: 19-inch rack, 32U

Material: Galvanized steel sheet with 20mm PEF insulation

Doors: One front door and one rear door with anti-theft, three-point lock system

Cooling: 2x AC230V fans with temperature controller

Lighting: 2x AC230V LED lamps with a switch

Sensors: 2x door sensors

Power & Cable Management: Cable inlet size 10x22.5mm, power cables in and out of the bottom of the cabinet

This robust outdoor cabinet is perfect for housing sensitive equipment in harsh environments. With a 19-inch, 32U rack and an IP65 rating, it ensures protection against dust and water while offering easy access with front and rear doors. Equipped with cooling fans, LED lighting, and door sensors, this cabinet is designed for reliable temperature control, visibility, and security. Ideal for telecommunications, industrial applications, and renewable energy systems, it features durable galvanized steel construction with insulation for enhanced protection and longevity.
