Thermostatic Steel Outdoor Equipment Cabinet Waterproof Dustproof

Thermostatic Steel Outdoor Equipment Cabinet Waterproof Dustproof
Thermostatic Steel Outdoor Equipment Cabinet Waterproof Dustproof Thermostatic Steel Outdoor Equipment Cabinet Waterproof Dustproof

Large Image :  Thermostatic Steel Outdoor Equipment Cabinet Waterproof Dustproof

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET7575210-UP
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Wooden Case with Pallet
Delivery Time: 15 to 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1800PCS per month
Detailed Product Description
Material: High Quality Galvanized Steel, Single Wall With Heat Insulation External Dimension: W×D×H 750×750×2100mm
Equipment Install Method: 7U 19” Rack + 4 Layer Battery Shelf Door Open: One Front Door
IP Level: IP55 Operating Temperature: - 40℃~+75℃
Cooling Method: Heat Exchanger Cable Inlet: On The Bottom Front And Back
High Light:

Thermostatic Steel Outdoor Equipment Cabinet

,

Dustproof Outdoor Equipment Cabinet

,

7u rack cabinet

Thermostatic Steel Outdoor Equipment Cabinet Waterproof Dustproof



Waterproof Dustproof Thermostatic Steel Outdoor Power Cabinet Power Supply Cabinet



1. Applications of Power Supply Cabinet



Estel can provide multi cabin outdoor integrated power supply cabinet, battery cabinet and telecommunication equipment cabinet with a variety of options. Our cabinet is widely used in the fields of wireless communication base station, power, radio station, solar cell and TV, including new generation 5G system, communication network / network integrated service, access / transmission switching station, emergency communication / transmission, traffic, monitoring, etc. And support a variety of installation methods, wall mounted, pole mounted, floor mounted. It can adapt to the outdoor simple and harsh working conditions, shelter from rain, snow, sand and dust, guard against theft and rats, etc.





2. Specifications of Power Supply Cabinet





Item Specification
Model ET7575210-UP
Cabinet
External Dimension W×D×H 750×750×2100mm
User space 7U 19” rack + 4 layer battery shelf(each shelf 4 battery)
Support battery size L×W×H 550×110×320mm
Material High quality galvanized steel, single wall with heat insulation
Door lock Outdoor anti-theft three point lock, support padlock
IP grade IP55
Cable entry On the bottom
Lifting hook 4 pcs hooks on the base
Operating temperature -40℃~+75℃
Cabinet relative humidity 5%~100%
Air pressure 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude)
Cabinet relative humidity 5%~100%
Cooling system
Heat Exchanger

Heat Exchange Capacity: 150W/K; Power Supply: DC48V
On the front door

Illumination
LED light DC48V, with one light switch


3. Power Supply Cabinet Advantages


(1) High compatibility, high integration, supporting multiple equipments, good appearance
(2) Flexible structure, flexible assembly
(3) Using heat exchanger for cooling, cost-effective.
(4) Can be installed in any difficult places include the top of mountain and the roof of buildings.
(5) Theft-proof, wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
(6) All the screws are built in cabinet, enhance security.
(7) Using heat insulation can effectively prevent heat from entering.
(8) All the screws and nuts are made from high rustproof stainless steel material.

4. Power Supply Cabinet Drawing

Thermostatic Steel Outdoor Equipment Cabinet Waterproof Dustproof 0

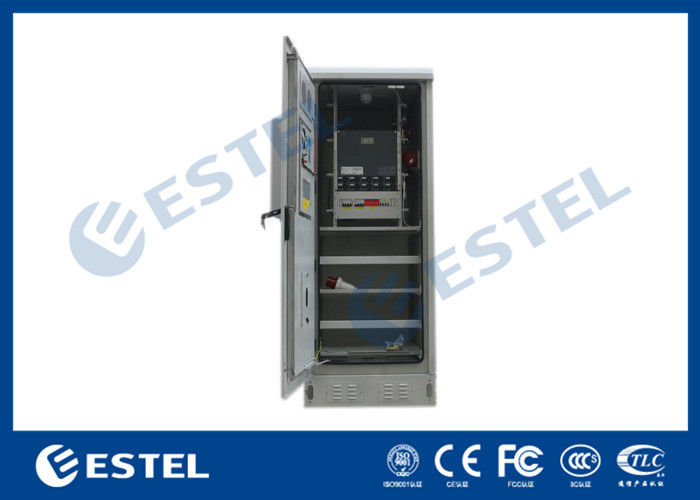

5. Cabinet Pictures


Thermostatic Steel Outdoor Equipment Cabinet Waterproof Dustproof 1



6. Our factory and product



Thermostatic Steel Outdoor Equipment Cabinet Waterproof Dustproof 2
