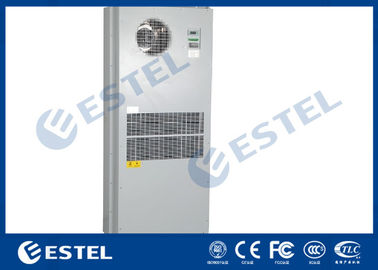

Embeded Mounting Outdoor Enclosure Air Conditioner 7500W For Electric Power Industry
Product Details
outdoor enclosure air conditioner
,control cabinet air conditioner
IP55 7500W Air Condtioner For Electric Power Industry
1. Key Features
- The internal and external circulation shall be completely isolated to ensure that there is no dust, moisture and other intrusion into the interior of the equipment.
-
Temperature adjustable,and all kinds of disadvantages caused by ventilation and heat dissipation are solved.
-
Refrigerant is R134A
-
IP55 Protection
-
LCD display
2. Product Parameters
| Type | Parameters |
| Mounting method | Embedded |
| Application temperature | -40℃ -70 ℃ |
| Working temperature | 18℃ -50 ℃ |
| Input voltage | AC 220V±15% 50/60Hz |
| Cooling capacity L35/L35 | 7500 W |
| IP grade | IP55 |
| Refrigerant | R134A |
| Noise | 60 dB(A) |
| Surface treatment | RAL7035 |
3. Installation Instructions
In order to avoid short circuit of air duct, it is suggested to make effective isolation between inner air inlet and outlet.This product is free of cover, customers don’t need to install additional cover.
1. If the customer needs to in-stall a protective cover, in order to ensure enough circulation of air, the opening rate of the air inlet and outlet should be greater than 60%. It is very important to prolong the unit life and reduce the maintenance frequency.
2. The air inlet and outlet of the protective cover should pre-vent short circuit of air duct, so that the air-con can get the best cooling effect.
4. Application
The product is widely used in outdoor communication cabinets, electrical cabinets, industrial cabinets and other occasions need heat dissipation. Create a cool, dry and safe environment for the operation of equipment and electrical enclosure.
-
