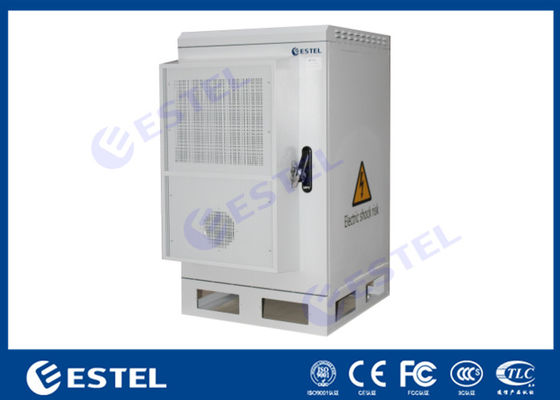

Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling

Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling
Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling

Large Image :  Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP65
Model Number: ET6565115PWF-UP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: L/C,T/T, etc
Supply Ability: 10,000 sets per month
Detailed Product Description
Proof: Waterproof, Dustproof Protection Leve: IP55
Material: Single Layer Galvanized Steel + Heat Insulation External Size: W×D×H 650×650×1150mm
Cooling: Heat Exchnager And Fan 19 Inch Standard Rack: 10U
Battery Shelf: 2 Layers Illumination: 48V DC, LED Light
Environmental Monitoring System: Optional Mount Socket: Optional
Power Distribution Unit: Optional Rectifier System: Optional
High Light:

outdoor network cabinet

,

wall mounted enclosure

Steel Wall Mount Outdoor Cabinet / Pole Mount Enclosure Equipemnt Battery Cabinet With Heat Exchanger Cooling



1 Product Description

1.1 Appearance

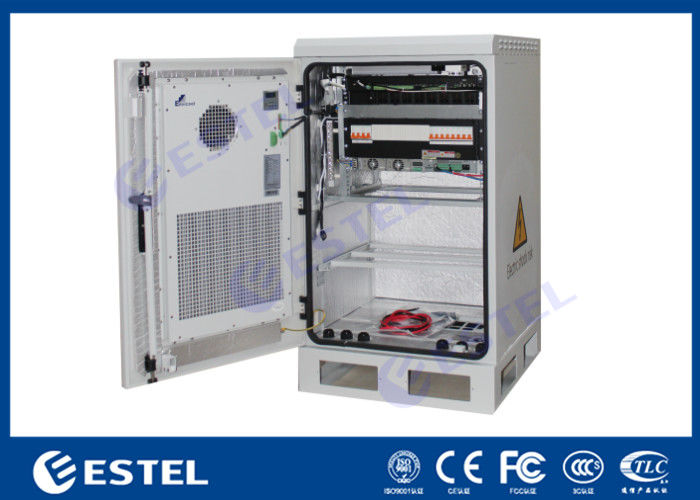

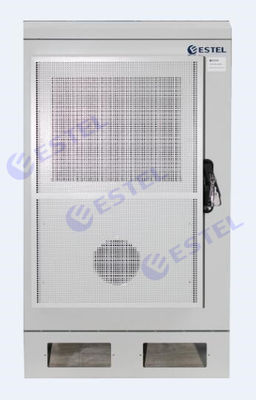

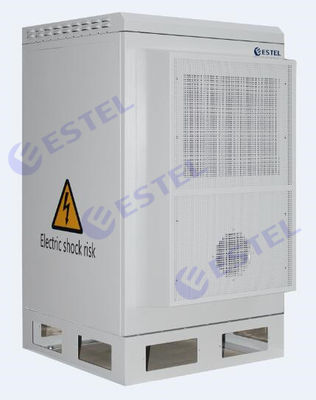

After the cabinet is installed, as shown in below Figures



Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 0                             Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 1











1.2 Cabinet configuration



The outdoor integrated cabinet configuration of this project is as follows:



Cabinet type Configuration Quantity Specifications
Main cabinet 19 inch standard rack 1 10U
Battery holder 1

2 layers

Each layer W×D×H 650×650×200 mm

Illumination 1 48V DC, LED light
Heat exchanger 1

Input voltage: DC48V

heat exchange capacity : 120W/K

Emergency fan 2 48V DC, bottom plate air intake
Grounding copper bar 1 M6 bolts 10
Busbar 1 M6 bolts 10
AC and DC power distribution unit 1

AC input: 63A/2P*1;

AC output: 63A/2P*1;

DC input : 63A/1P *1;

DC output : 16A/1P*1;

DC output : 10A/1P*3;

DC output : 6A/1P*3

Circuit breaker brand: Schneider

Socket 1 8 -bit universal socket, 220V 16A
Embedded power supply 1

Model: NetSure211 C23

DC48V, 40A ,1U

distribution unit *1

20A rectifier module *2

monitoring module *1

Brand: Emerson

Environmental monitoring system 1

1* environment monitoring unit, 1U, SNMP communication;

1* smoke sensor;

1* water sensor;

1* temperature & humidity sensor;

1* tilt & shock combination sensor;

1* door sensor

power supply: DC48V

Base sealing plate 1 1 set contains 8 pieces, 2 blocks from front to back


1.3 Cabinet size



The size of a single cabinet is shown in Figure 3 . External size: W×D×H 650×650×1150mm

Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 2

                                                                   Figure 3



1.4 Cabinet material



single layer galvanized steel + heat insulation :

Outer layer: 1.5mm galvanized steel, inner layer: 20mm PEF heat insulation



2 Cabinet installation

2.1 Unpacking

Outdoor integrated cabinets are generally packed in wooden cases. When disassembling the package, take care to avoid damage to the cabinet.



2.2 Floor, wall hanging, pole installation steps and dimensions



1 ) Landing

Floor installation effect diagram

Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 3







Cabinet base size and base expansion bolt fixing hole position

Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 4



2 ) Wall mount

Wall mounting effect diagram

Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 5



Wall mounting steps

Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 6



Wall mounting size diagram

Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 7





3 ) Pole

Pole mounting effect diagram

Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 8





Pole mounting steps

Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 9





Pole size



Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 10

2.3 Base sealing plate



If you need to seal the base of the cabinet, use the base sealing plate (optional) to seal the notch and hole around the base. The mounting screws are the M5 stainless steel screws in the cabinet attachment (see Figure 4 ).



Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 11



                                                                                    Figure 4



Note: If the cement foundation is not flat, it is recommended to use a gasket or spacer to level the base of the cabinet.



3. Cabinet picture



Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 12Steel Outdoor Wall Mounted Cabinet Pole Mount Enclosure Equipemnt Battery Type With Heat Exchanger Cooling 13
