Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55

Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55
Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55

Large Image :  Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET9090210-UP2
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Wooden Case with Pallet
Delivery Time: 15 to 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1800PCS per month
Detailed Product Description
Application: Outdoor Telecom Site Protection: IP55
Material: Sanwich Structure Panel, Galvanized Steel, Double Wall With Heat Insulation Finish: Anti-corrosion Powder Coating
Space: 31U 19" Rack And 1 Layer Battery Cooling System: AC220V 60Hz 1500W Air Conditioner And DC48V 300W Aor Conditioner
EMS: -48VDC AC And DC Power Distribution Unit: AC/DC PDU
Embedded Power Supply: Brand: Emerson Color: RAL7035 Grey
Battery: Lead Acid Battery, SP12-65/12V/65Ah
High Light:

outdoor power enclosure

,

outdoor equipment cabinet

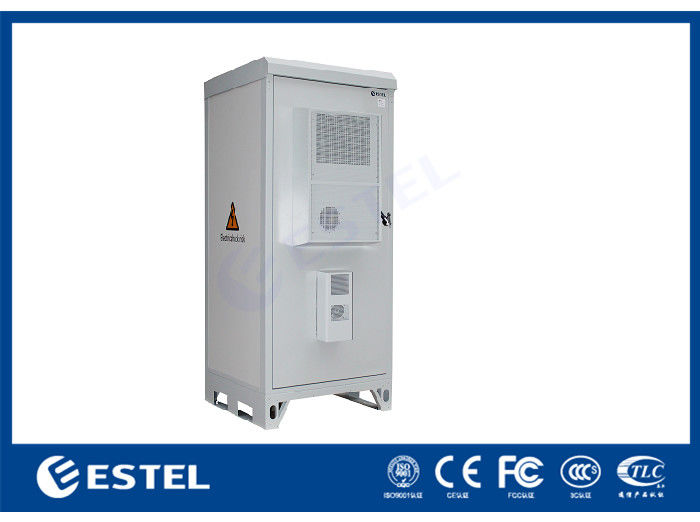

Sandwich Structure Panel Outdoor Power Supply Cabinet With Emerson Rectifier and Battery



1 Product description

1.1 Appearance

After the cabinet is installed, as shown in Figure 1 and Figure 2





Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 0Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 1



          Figure 1                                                                                                          Figure 2





1.2 Cabinet configuration

The outdoor integrated cabinet configuration of this project is as follows:



Cabinet type Configuration Quantity Specifications
Main cabinet 19 inch standard rack 1 31U
Battery holder 1 1 layer W×D×H 800×800×350 mm
illumination 1 48V DC, LED light
air conditioning 1 AC 220V input, cooling capacity 1500W
air conditioning 1 DC 48V input, cooling capacity 300W
Grounding copper bar 1 M6 bolts 10
Busbar 1 M6 bolts 10
AC and DC power distribution unit 1

AC input: 63A/2P*1;

AC output: 63A/2P*1;

DC input : 63A/1P *1;

DC output : 16A/1P*1;

DC output : 10A/1P*3;

DC output : 6A/1P*3

Circuit breaker brand: Schneider

PDU 1 8 -bit universal socket, 220V 16A
Embedded power supply 1 Netsure211 C46 / DC48V / 60A / 3U / rectifier module 20A with 3 / Brand: Emerson
battery 4 SP12-65/12V/65Ah/ size: 350*167*185/ Brand: Shandong Shengyang
Environmental monitoring system 1 GMU/ smoke, flooding, temperature and humidity, tilting vibration, access sensor
Base sealing plate 1 1 set containing 6, before and after one, two right and left




1.3 Cabinet size

The size of a single cabinet is shown in Figure 3 . External size: W×D×H 905×905×2107mm



Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 2



                                                        Figure 3



1.4 Cabinet material



Sanwich structure panel, galvanized steel, double wall with heat insulation



2 Cabinet installation

2.1 Unpacking

Outdoor integrated cabinets are generally packed in wooden cases. When disassembling the package, take care to avoid damage to the cabinet.



Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 3

2.2 Cabinet base

The size of the base of the cabinet and the fixing hole of the base expansion bolt are shown in Figure 4 .

Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 4

                                                           Figure 4



2.3 Cabinet fixing

( 1 ) According to the hole position map or the scribe template of the cabinet base, the base expansion bolt hole of the cabinet is punched with a hammer drill in advance, and the diameter of the hole is referenced to the size of the expansion bolt;

( 2 ) First, fix the leftmost or rightmost first cabinet with expansion bolts, place the remaining cabinets one by one, and finally fix the cabinets with the expansion bolts.

( 3 ) If you need to seal the base of the cabinet, use the base sealing plate (optional) to seal the notch and hole around the base. The mounting screws are the M5 stainless steel screws in the cabinet attachment (see Figure 5 ).

Note: If the cement foundation is not flat, it is recommended to use a gasket or spacer to level the base of the cabinet.

Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 5

                                                                        Figure 5



Note: When crossing the wire loop, first cut the cross with a utility knife. After the cable is connected, seal the remaining gap on the wire loop with the sealing glue attached to the cabinet.,As shown below;



Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 6



3 Device debugging

3.1 Air conditioner

Refer to the attached Cabinet Air Conditioner User Manual for relevant.



4. Cabinet picture







Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 7Emerson Rectifier / Battery Outdoor Power Cabinet Sandwich Structure Panel IP55 8
