|Proof:||Waterproof||Cooling:||C48V 100W Peltier Air Conditioner|
|Protection Leve:||IP55||Material:||Galvanized Steel|
|Model Number:||ET453070P||External Size:||W×D×H 450×300×700mm|
wall mounted enclosure,
outdoor network cabinet

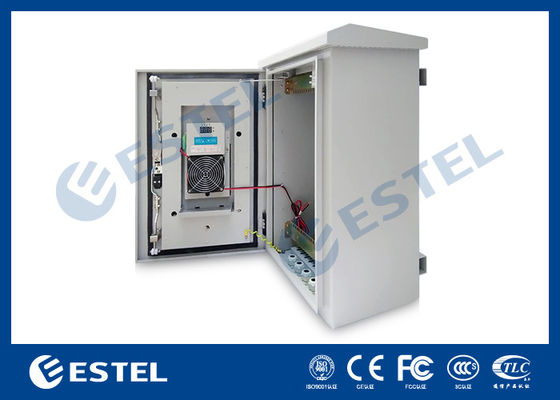

Galvanized Steel Outdoor Wall Mounted Enclosure Waterproof ISO9001 CE Certification
|Place of Origin: Shenzhen, China (Mainland)||
W×D×H 357×214×601mm (19”, 7U)
|Brand Name: ESTEL||Structure: double wall, with insulation, sandwich structure.|
|Model: ET453070P||Cabinet Layout: one compartment, for installing 19” equipment|
|Product Name: Outdoor Wall Mounted Cabinet||· Protection Level: IP55|
|Certification: ISO9001, CE, 3C, FCC, TLC, IP55||Cabinet Lock: anti-theft three point lock|
|Application: outdoor telecom base station||Cable Entry: at cabinet bottom|
|Material: galvanized Steel||Illumination: DC48V LED lamp|
|Heat Insulation: PEF||Cabinet Door: one front door|
|Color: grey (support custom made)||Cooling: DC48V 100W Peltier Air Conditioner|
|Coating: anti-corrosion outdoor powder coating||Installation:wall mounted (also support pole mounted)|
Payment & Shipping Terms
|Minimum Order Quantity:||1 set|
|Payment Terms:||T/T, L/C, etc|
|Supply Ability:||10,000 sets per month|
|Delivery Time:||7-15 working days|
|Packaging Details:||wooden case|
1.1 Cabinet Structure: the cabinet use sandwich structure, outer plate is 1.5mm galvanized steel, inner plate is 0.8mm galvanized steel, with 40mm insulation between outer plate and inner plate.
1.2 Door and Door Lock: the cabinet includes one front door. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.
1.3 Applicable Environment Conditions:
Environment temperature: -40°C ~ + 70°C;
Environment humidity (RH): ≤95% (at + 40°C);
Air pressure: 62kPa ~ 102kPa.
1.4 Material: galvanized steel.
1.5 Surface Treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
1.6 Cabinet Load Bearing: ≥300kg.
1.7 Ingress Protection: IP55.
1.8 Flame Retardance: comply with GB5169.7 test A.
1.9 Insulation Resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).
1.10 Withstand Voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
1.11 Mechanical Strength: each surface can bear upright pressure＞980N; after the door is open, its outer end can bear upright pressure ＞200N.
(1) Technical Parameters
External Size: W×D×H 450×300×700mm
Internal Size: W×D×H 357×214×601mm (19”, 7U)
|Equipment Installation Method||19” standard rack|
|Door||With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)|
2.Double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
|Temperature Control||Cooling||DC48V TEC air conditioner|
|Lighting||LED lamp||48V LED lamp|
|Temperature||Temperature||Working Temperature: -20°C ~ 55°C|
|Storage Temperature: -40°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1124 × (1±5%)W/m2|
|1||Outdoor Telecom Cabinet||1||Set||
(1)External Size: W×D×H 450×300×700mm
W×D×H 357×214×601mm (19”, 7U)
(2) One compartment;
(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 40mm PEF heat insulation between two walls
Cooling Capacity: 100W
Power Supply: DC48V
|4||Door Sensor||1||PC||Used for controlling led lamp|
The ET453070P Pole or Wall Mounted Outdoor Telecom Cabinet is widely used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
3.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
3.2 The cabinet use DC48V 100W peltier air conditioner and fans for cooling.
3.3 The cabinet includes -48VDC LED lamp for illumination.
3.4 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re cable inlets individually for power cable, signal cable and optical cable at the bottom of cabinet.
3.5 All the cables, seal and insulation material used in the cabinet are made from flame retardant materials.
3.6 The cabinet use standard 19” rack installation method.
4. Dimension Diagram
Cabinet External Size: 450mm×300mm×700mm (W×D×H).
LED illumination lamp, door sensor, fans are installed at the top part of the cabinet.
All outside cables use bottom entrance method.
(1) The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2) The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
9.1 Door lock theft proof design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
(2) Three point lock
9.2 Connection and Fastening
9.3 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
Install the cabinet as the following diagram(also support wall mounted).
