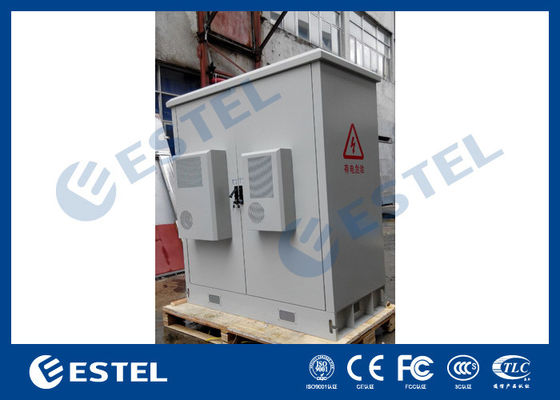

Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System

Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System
Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System

Large Image :  Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: DDTE047
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C, DA, DP, etc
Supply Ability: 7,200 sets per month
Detailed Product Description
Cabinet Layout: Two Separated Compartments, One For Battery, The Other One For 19” Equipment. Structure: Double Wall, With Insulation, Sandwich Structure.
Coating: Anti-corrosion Outdoor Powder Coating Applicaiton: Outdoor Telecom Base Station
Protection: Dustproof, Sunproof And Rainproof Cooling System: AC220V Air Conditioner And DC48V Fans
High Light:

BTS outdoor cabinet

,

street cabinets telecoms



Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System



Quick Details



Place of Origin: Shenzhen, China (Mainland) External Size: H×W×D 2000×1600×800mm
Brand Name: ESTEL Structure: double wall, with insulation, sandwich structure
Model Number: DDTE047 Cabinet Layout: two separated compartments, one for battery, the other one for 19” equipment.
Product Name:Base Station Cabinet Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Protection Level: IP55
Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp
Heat Insulation: PEF Grounding Protection: copper bar
Color: grey (support custom made) Cooling: AC220V air conditioner and DC48V fans
Coating: anti-corrosion outdoor powder coating Accessories Options: PDU, rectifier system, environment monitoring system,battery



Payment & Shipping Terms



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: T/T, L/C, DA, DP, etc
Supply Ability: 7,200 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension External Size: H×W×D 2000×1600×800mm
Layout Two compartments (left compartment and right compartment, with middle division plate).
Equipment Installation Method 19” rack
Door With two front doors, and special lock for outdoor cabinet (support padlock)
Material Galvanized steel; double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and DC48V fans for left compartment and right compartment.
Lighting LED lamp 48V LED lamps; The lamps will be on when the cabinet door is open, and will be off when the cabinet door is closed.
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



(2) Accessories List



No. Item Quantity Unit Specs
1 Two Compartment Outdoor Telecom Cabinet 1 Set External Dimension: H×W×D 2000×1600×800mm
2 Air Conditioner 2 Set

Cooling capacity:1000W,;

Power supply: AC220V,50Hz

3 Rectifier System 1 Set DC48V, 90A, 4800W
4 Fan 4 Set DC48V, start work at 35°C
5 Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4.

Height: 4U

6 Lead Acid Battery 8 Set 12V, 100AH; Model: SP12-100
7 Environment Monitoring Unit 1 Set
8 Temperature and Humidity Sensor 2 PC
9 Door Sensor 4 PC
10 Water Sensor 2 PC
11 Smoke Sensor 2 PC
12 LED Lamp 2 PC
13 Package 1 Set Wooden Case





2. Application



The DDTE047 two compartment integrated outdoor telecom cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



3.Cabinet Layout Diagram



Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 0



Cooling Diagram:

Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 1



Compressor Air Conditioner Cooling Diagram (The red is hot air , and the green is cold air)





Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 2



Fan Cooling Diagram (The red is hot air , and the green is cold air)



4. Description



The cabinet includes two compartments, with separated left compartment and right compartment, and there is middle division plate between the two compartments. The left compartment is equipment compartment and the right compartment is battery compartment. The cabinet cooling uses air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable



4.1 Components Installation



4.1.1 LED lamp, smoke sensor and door sensor are installed at the top of the cabinet. Environment monitoring unit , PDU and rectifier system are installed on 19” rack.



4.1.2 Water sensor is installed at the bottom of the cabinet.



Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 3





4.1.3 Temperature and humidity sensor is installed at the side inside the cabinet.





Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 4





4.1.4 Air Conditioner is installed on the door of the cabinet.



5. Cable Inlet



Feeder cable and other external cables all use bottom wiring method.

Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 5



6. Grounding Protection



  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 6

7. Theft Proof Design

7.1 Door lock theft proof design



  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.





Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 7



  • Three point lock



Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 8

7.2 Connection and Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.



Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 9



7.3 Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



8. Similar Cabinet Pictures



Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 10



Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 11



9. Packing and Shipping



Solid Two Bay Telecom Cabinets Outdoor With Cooling / Monitoring System 12



Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
