Payment & Shipping Terms:
|Cabinet Lock:||Anti-theft Three Point Lock||Protection Level:||IP55|
|Accessories Options:||Led Lamp, Door Sensor||Color:||Grey (support Custom Made)|
|Heat Insulation:||PEF||Material:||Galvanized Steel|
outdoor communication cabinets,
telecom equipment cabinet

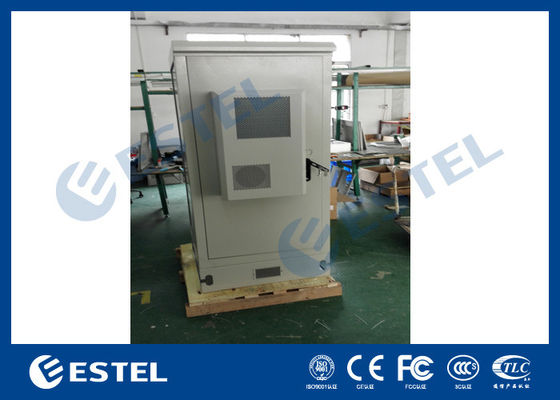

One Compartment Outdoor Telecom Cabinet Grey Color For Communication Tower
|Place of Origin: Shenzhen, China (Mainland)||External Size H×W×D 1750×900×900mm|
|Brand Name: ESTEL||Structure: double wall, with insulation, sandwich structure.|
|Model Number: DDTE076||Cabinet Layout: one compartment, for installing 19” equipment|
|Product Name: Outdoor Telecom Equipment Cabinet||Cabinet Lock: anti-theft three point lock|
|Certification: ISO9001, CE, 3C, FCC, TLC, IP55||Protection Level: IP55|
|Application: outdoor telecom base station||Cable Entry: at cabinet bottom|
|Material: galvanized steel (support custom made)||Illumination: DC48V LED lamp|
|Heat Insulation: PEF||Grounding Protection: copper bar|
|Color: grey (support custom made)||Cooling: heat exchanger|
|Coating: anti-corrosion outdoor powder coating||Accessories Options: led lamp, door sensor|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Payment Terms:||L/C,D/A,T/T, Western Union, Paypal, etc|
|Supply Ability:||6,000 sets per month|
|Delivery Time:||15-20 working days|
|Packaging Details:||wooden case|
(1) Technical Parameters
|Structure||Dimension||External Dimension: H×W×D 1750×900×900mm|
|Equipment Installation Method||19” rack|
|Door||With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)|
|Material||Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate|
|Heat Insulation||There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.|
|Structure||Assembled or welded|
|Temperature Control||Cooling||Heat exchanger|
|Lightning Proof||Grade B lightning proof||Nominal: 60KA, Max.: 100KA|
|Lighting||LED lamp||48V LED lamps (immovable), with protective circuit breaker|
|Temperature||Temperature||Working Temperature: -40°C ~ +55°C|
|Storage Temperature: -50°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1120 ×(1±5%)W/m2|
(2) Accessories List
|1||Outdoor Telecom Cabinet||1||Set||
(1) External Dimension: H×W×D 1750×900×900mm
(2) One compartment: equipment compartment
(3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;
|2||Heat Exchanger With Heater||1||Set||
Cooling capacity: 80W/K, DC48V;
|3||Door Sensor||1||PC||For controlling LED lamp|
The DDTE076 Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.
The cabinet includes 19” equipment installation rack. The cabinet includes one heat exchanger, installed on front door.
The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
Three point lock
Feeder cable and other external cables all use bottom wiring method.
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
5. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
