Product Details:
Payment & Shipping Terms:
|
| External Size: | W*D*H 800*800*2100mm | Material: | SUS304 |
|---|---|---|---|
| Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) | Cable Inlets: | From Cabinet Bottom |
| Mounting Type: | Floor Mount | Cooling System: | Air Conditioner And Fan |
| Protection Level: | IP55 | Cabinet Color: | RAL7035 |
| Hinge: | Inner Hinge | Insulation: | 20mm PEF |
| Highlight: | Outdoor Telecom Cabinet With AC,Anti Rust Outdoor Telecom Enclosure,Retardant Materials Outdoor Telecom Cabinet |
||
40U Air Conditioner Outdoor Telecom Cabinet Retardant Materials Anti Rust Enclosure
1. 40U Air Conditioner Cabinet Application:
1.1 Base station
1.2 Mobile & Radio, 3G 4G 5G, Tetra, Microwave
1.3 Telecommunication
1.4 Internet service providers
1.5 Environmental monitoring
1.6 CCTV and security systems

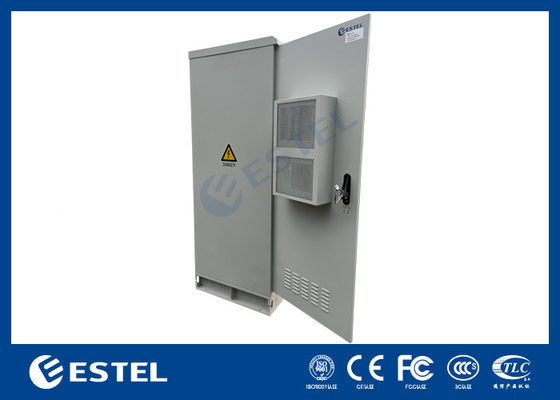

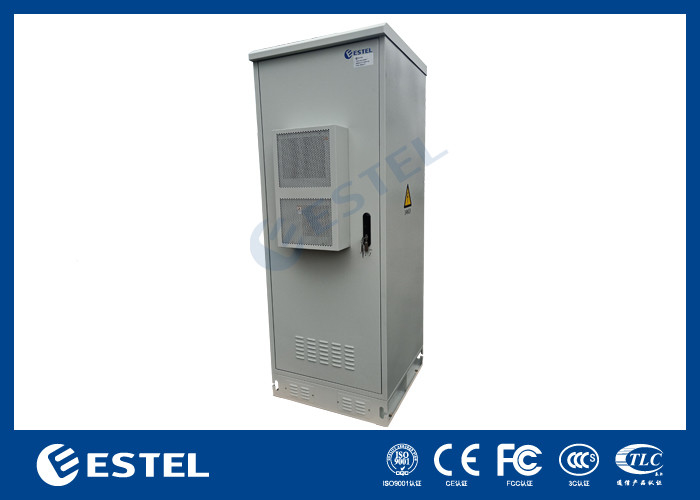

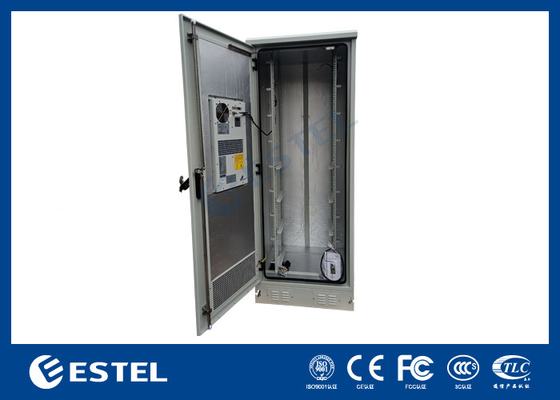

2. Retardant Materials Anti Rust Enclosure Pictures:
3. 40U Outdoor Telecom Cabinet Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Size: W×D×H 800mm×800mm×2100mm |
| Brand Name: ESTEL | Structure: double wall, with insulation, sandwich structure |
| Model: ET8080210A-40U | Protection Level: IP55 |
| Product Name: Floor Mounted Cabinet | Cabinet Layout: one compartment, for installing 19” equipment |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Cabinet Lock: anti-theft three point lock |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: SUS 304 | Illumination: DC48V LED lamp |
| Heat Insulation: 20mm PEF | Cabinet Door: one front door, front maintenance |
| Color: white, grey (support custom made) | Cooling: air condiitioner |
| Coating: anti-corrosion outdoor powder coating | Installation: floor mounted with installation accessories |
4. 40U Outdoor Telecom Cabinet Accessories List:
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Size: W×D×H 800mm×800mm×2100mm (2) One compartment, 19inch, 40U (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock). (4) Material: SUS 304; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 20mm PEF heat insulation between two walls. |
| 2 | Air conditioner | 1 | PC | 600W 48VDC |
| 3 | Door Sensor | 1 | PC | |
| 4 | LED lamp | 1 | PC | DC48V |
| 5 | LED lamp switch | 1 | PC | Used for controlling LED lamp on/off |
|
6 |
Package | 1 | Set | Wooden Case |
