16U Telecom Outdoor Cabinet Outdoor 19 Inch Rack Cabinet IP55
Product Details
16U Telecom Outdoor Cabinet
,Telecom Outdoor Cabinet for base station
,Outdoor 19 Inch Rack Cabinet IP55
16U Outdoor Cabinet Standard 19 Inch Rack Telecom Cabinet
1.Standard Cabinet Introduction
This outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.
2.Cabinet Brief Introduction
-Ingress protection is IP55, we can provide IP65 cabinet based on client’s actual.
-Made of heavy gauge galvanized material.
-Front door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.
-Standard 19 inch mounting posts.
-Doors secured with steel dead locking system lock (support PADLOCK)
-It is installed in the ground root or above ground column base system by "direct burying"
-Cable entry is via the base as standard with side or roof entry available upon request.
3. Table 1 Standard Compliance
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |
4. Cabinet Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET111122656510016 |
| Protection Level | IP55 | |
| External Dimension | H1000mm×W650mm×D650mm ( can be customized) | |
| Internal Dimension | 19 inch rail,16U | |
| Material | Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm | |
| Insulation | PEF (optional) | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| AC air conditioner | Power Supply:AC220V,50Hz Cooling Capacity:500W | |
|
Environment Monitoring Unit |
19 inch installation, 1U high, 48VDC input voltage, communication port: SNMP 9-way passive switching value input, 6-way active switching value input, 6-way relay output. |
|
| Sensors | 1 x smoke sensing, 1 x water sensor, 1 x temperature and humidity sensor, 1 x door sendor, 1 x vibration sensor. |
|
| Others | 48VDC LED lamp for illumination | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |

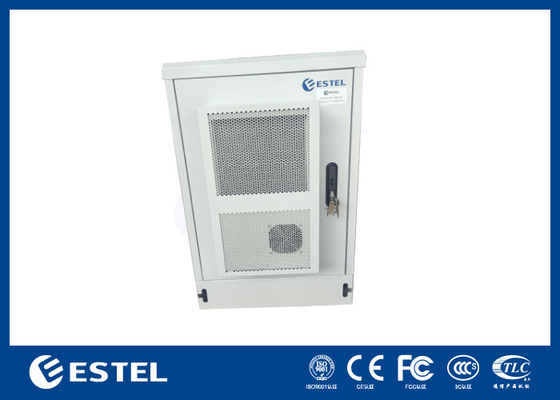

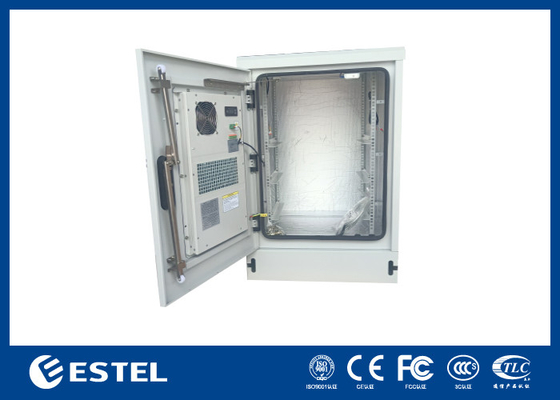

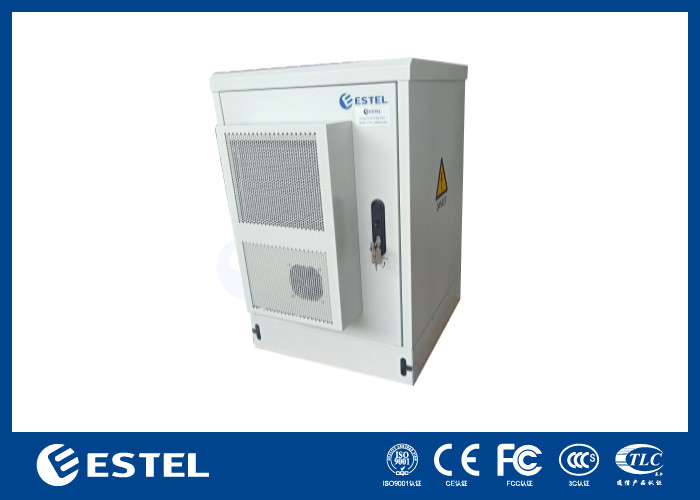

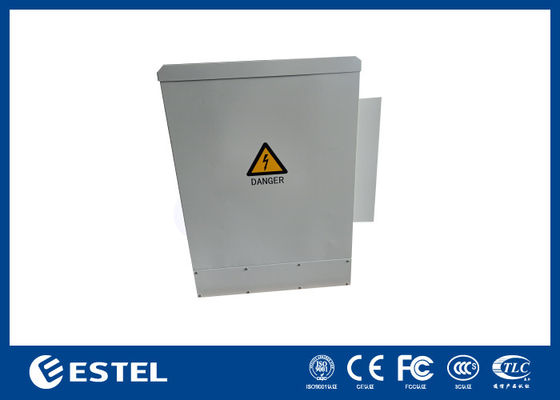

6.Cabinet Pictures
7.Cabinet Diagram
8.Various cooling system for your choice
- Natural ventilation cooling system
- DC/AC Air conditioner cooling system
- Heat exchanger cooling system
- Fan cooling system
- TEC cooling system
9.Factory introduction:
| Place of Origin: Shenzhen, China (Mainland) |
| Brand Name: ESTEL |
| Factory Size: 3000 Square Meters |
| Product Name: Outdoor Battery Cabinet |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 |
| Contract Manufacturing: OEM ,ODM |
| Market:Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries |
-
