Product Details:
Payment & Shipping Terms:
|
| Cabinet External Size: | W×D×H 900×900×2100mm | Protection Level: | IP55 |
|---|---|---|---|
| Modle: | ET9090210-EQ | 19 Inch Rack: | 40U |
| Cooling System: | Air Conditioner And Fan | Color: | RAL7035 Grey |
| Door: | One Front Door, One Rear Door | Material: | Galvanized Steel, Single Wall With Insulation |
| Cabinet Lock: | Anti-theft Three Point Lock | Surface Treatment: | Anticorrosion Powder Coating |
| Type: | Outdoor Equipment Cabinet | Application: | Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom |
| High Light: | 40U Outdoor Equipment Cabinet,Powder Coating Outdoor Equipment Cabinet,Anti Corrosion Telecom Cabinet |
||

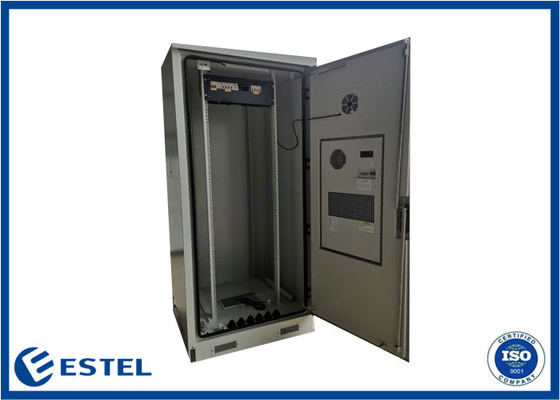

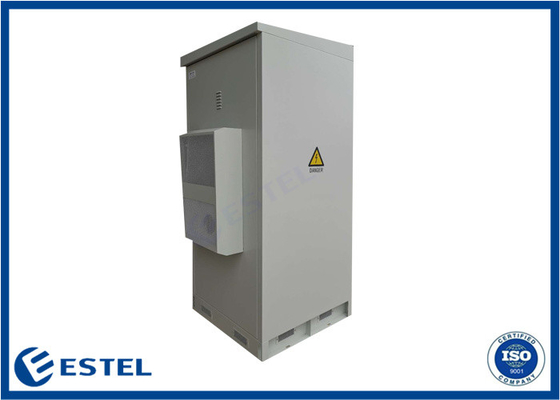

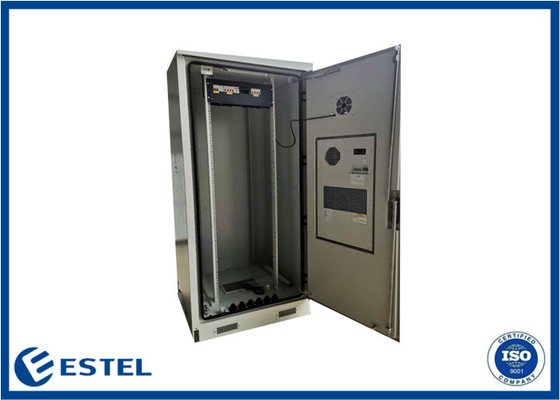

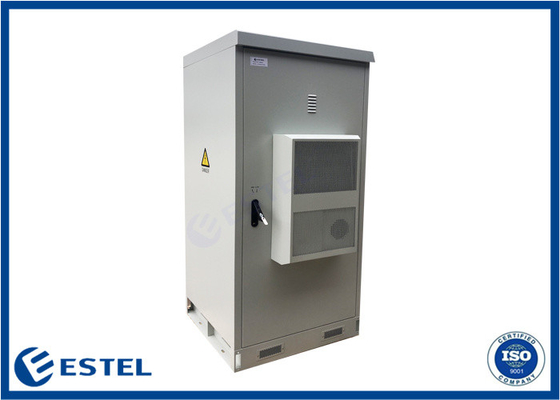

40U IP55 Anti Corrosion Outdoor Equipment Cabinet With Front And Rear Door
1. 40U IP55 Anti corrosion Outdoor Telecom Cabinet Features
● Front and rear door to access the inside equipment
● The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
● Cabinet cooling: fans and air conditioner.
● The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets individually for power cable, signal cable and optical cable.
● Include grounding bar.
● Anti corrosion powder coating
● Cooling by air conditioner and emergency fan
● High integration, compact structure, easy installation and migration on later stage
● Anti-theft lock, excellent keyhole protection device
2. 40U IP55 Anti corrosion Outdoor Telecom Cabinet Application
Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
3. 40U Outdoor Telecom Cabinet Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W*D*H 900*900*2100mm Internal Dimension: W*D*H 800*800*1800mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 40U | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with insulation | |
| Heat Insulation | 20mm PEF | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: W*D*H 900*900*2100mm (2) One compartment: 19” 40U (3)With one front door, and three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel, single wall with insulation |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 1500W, Power Supply: AC220V, 50Hz |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | AC220V |
| 4 | Environment Monitoring Unit | 1 | Set | 1U, AC220V, support SNMP communication |
| 5 | Water Sensor | 1 | PC | |
| 6 | Smoke Sensor | 1 | PC | |
| 7 | Temperature and Humidity Sensor | 1 | PC | |
| 8 | Door Sensor | 1 | PC | |
| 9 | LED Lamp | 1 | PC | AC220V |
| 10 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 Input Voltage: AC220V. |
| 11 | Package | 1 | Set | Wooden Case |
5.Cabinet Cooling System
1)Air conditioner: 1500W cooling capacity air conditioner installed on the front door of the cabinet.
Cooling capacity: 1500W,
Power Supply: AC220V, 50Hz
2)2 pcs Fan
The cabinet includes two front doors. The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
7. Cabinet pictures
(1) Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2) Door hinges use inner hinge mode.
