16U Waterproof Outdoor Telecom Cabinet 19 Inch Electronic Equipment Enclosures
Product Details
16U Outdoor Telecom Cabinet
,Outdoor Telecom Cabinet 19 Inch
,single wall Electronic Equipment Enclosures
16U Waterproof Outdoor Telecom Cabinet Outdoor 19 Rack Enclosure Mount Equipment Rack Cabinet
1.Advantages of Telecom Cabinet:
- Vandal-proof:
Highly protected case, double walls, each wall thickness 1.5 mm, safe-type locks, or electromechanical lock (remote control of the openings).
The cabinet case is without any external fastenings: hidden door hinges, internal fastening of the air conditioner case and socle, the hidden connection of a diesel generator.
Critical points are protected with a metal 10 mm bar.
- Energy efficiency:
The Outdoor cabinet is equipped with a climate system : air conditioner with low energy consumption, free cooling system, air ventilation.
- Environmental protection: Protection level is IP65, anti-corrosion powder-polymer coating.
- Additional characteristics:
Model range: from 15 U to 44 U;
Needed climate systems can be installed: AC / DC air conditioner, fan heaters, and ventilation system;
Possibility to increase antivandal protection: anti-vandal belt on the door, an electromechanical lock, double external lock, separate internal lock for the battery compartment and more.
We supply turnkey solutions: outdoor cabinets with pre-installed power systems, electrical distribution, and a set of sensors.
The Cabinet technical characteristics (specification, climate unit, sensors) can be adapted to individual customer requirements.
2.Technical Parameters
Model No:ET111122656510016
Protection Level:IP55 ,Waterproof,dust proof.
External dimension:H1000mm×W650mm×D650mm (can be customized)
Internal Dimension:19 inch rail, 16U
Material:Galvanized steel,single wall, 1.2mm thickness,
Insulation:PEF (optional)
Coating:Polyester powder coating
Color:RAL7035(can be customized)
Cooling:500W 220VAC 50HZ
Lock:Anti-theft three-point locking system,support padlock
Hinge:Inner hinge
Lamp:220VAC LED Lamp
Installation Options:Floor mounted
Cable Routing: Cable in and out from the bottom of cabinet
Maintenance:One front door, front maintenance
Accessory List(options)
| Accessory List(options) | ||
| No. | Item | Specifications |
| 1 | Fan | AC110/220V or DC 48V |
| 2 | Power Supply | AC INPUT: 32A/1P MCB or 63A/2P MCB DC OUTPUT: 16A/1P MCB |
| 3 | Environment Monitoring Unit | 48VDC Communication port: RS485, TCP/IP, SNMP optional |
| 4 | Door Sensor | Monitor door open status inside cabinet and provide real time alarm. |
| 5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. |
| 6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. |
| 7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real time alarm. |
| 8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. |
Cooling System(Optional)
| Cooling System(Optional) | ||
| No. | Item | Specifications |
| 1 | Air Conditioner | AC220V/DC48V, Cooling Capacity 300w-5000w |
| 2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k-200w/k |
| 3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 200w, 300w |
| 4 | Fan | AC110/220V or DC 48V |

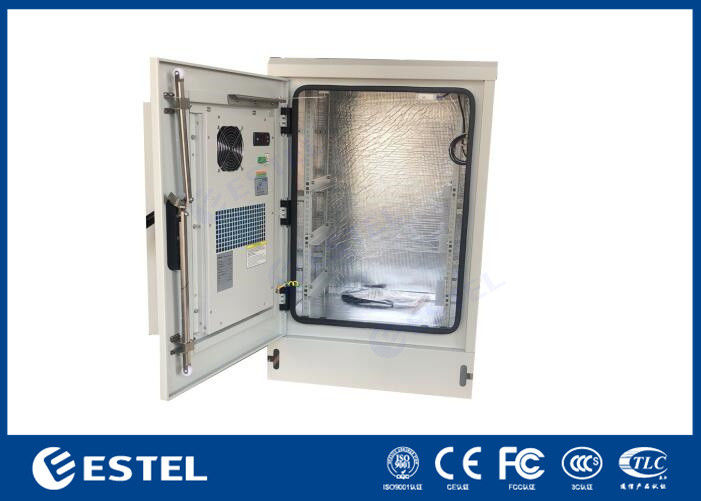

3. Cabinet Pictures
4.IP55/IP65
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
5. Packing and Delivery
(1)Packaging: Wooden case then onto pallet
(2) Delivery:
- By Express:Door to door, very convenient, don't need to clearance or pick-up
- By Air:Airport to airport, you need to do the customs clearance and pick up the goods at your local airport
- By sea: Port to port and you need to do the customs clearance and pick-up the goods at your local port
-
