Product Details:
Payment & Shipping Terms:
|
| Cabinet External Size: | H2100mm×W900mm×D900mm | Protection Level: | IP55 |
|---|---|---|---|
| Modle: | ET111124909021040 | Color: | RAL7035 GREY |
| Application: | Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom | Size: | Customer's Drawings |
| Cooling System: | Door Installed Heat Exchanger / AC / TEC | Surface Finish: | Powder Coating |
| Structure: | Front Door,one Unit One Cabin | Protection Level: | IP55 / IP65 |
| Highlight: | Weatherproof 19 Telecom Rack,Outdoor Electronic Equipment Enclosures IP55,19 Outdoor Electronic Equipment Enclosures |
||
19 Telecom Rack Outdoor Electronic Equipment Enclosures Outdoor Battery Cabinets
1. Outdoor Telecom Cabinet Features
Our Weatherproof Enclosures have the solution for products in industrial environments with high demands on safety, durability, reliability and cost saving for the end user.
• Safety - tested and approved by third party testing laboratories.
• Durability - materials used give a high durability in tough conditions and environments.
• Reliability - high quality contacts ensure reliability. (IP55 or higher)
• Cost saving - designed for quick and easy installation.
• Construction - Body and door/cover are formed from 16 or 18 gauge cold-rolled steel. (1.0/1.2mm)
- w/ removable inner door are formed from sheet steel, depth adjustable
- Removable inner panel is formed from 14 or 16 gauge galvanized sheet
- Grounding and panel mounting hardware provided.
2. ET111124909021040 Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 900×900×2100mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 20U,the bottom is 2 layers Battery rack | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, double wall thickness1.2mm | |
| Heat Insulation | EPS sandwich board | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Heat Exchanger:48VDC 80W/K*1 Fan:12038 48VDC*2 |
| Power Distribution Unit | AC Imput: 63A/2P ×1 | |
| AC Output: 16A/1P×4 | ||
| DC Output: 16A/1P×4 | ||
| Sensors | Door sensor, water sensor, temperature and humidity sensor, smoke sensor | |
|
Environment Monitoring Unit |
19 inch installation, 1U high, 220VAC input voltage, communication port: SNMP | |
| Lighting | LED lamp | |
| Temperature | Working Temperature: -40°C ~ +55°C | |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |

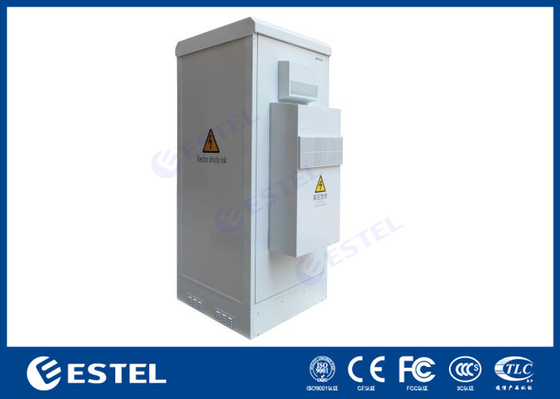

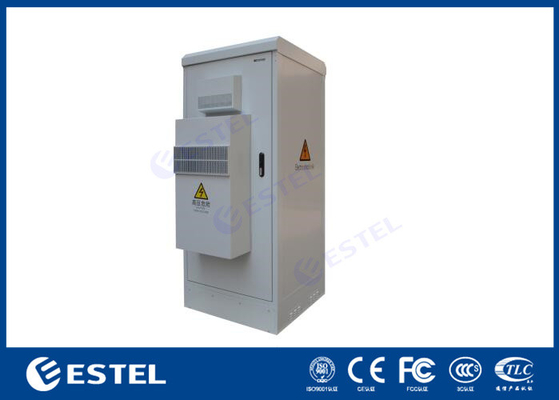

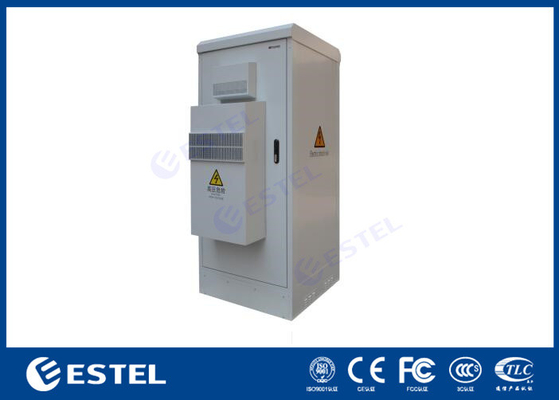

3. Cabinet Pictures
4.IP55/IP65
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
5. Applications of Outdoor Telecom Cabinet
6. Packing and Delivery
(1)Packaging:Wooden case with pallets
(2) Delivery:
7.Why Choose Us
Q1: Are you a Manufacturer or trading company?
A: We are a Professional Outdoor Cabinet Manufacturer .Our Factory include 8 business sections. Outdoor telecom cabinet, Air conditioner, Power supply, Intelligent Power Distribution. Battery, IOT,
Q2: Do you have any MOQ limit for outdoor cabinet ?
A: Can be offer 1 pc sample that you feel our high quality and excell service.
Q3: What is the leading time?
A: Sample order is 1-2 weeks, bulk order is about 25 days after receive the payment.
Q4.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q5: Can you provide OEM ODM products with my brand and logo?
A: Yes, OEM & ODM is available..
Q6: Can I visit your company and factory in China?
A: Welcom to vist our factory anytime.
