Product Details:
Payment & Shipping Terms:
|
| Cabinet External Size: | W×D×H 900×900×1950mm | Material: | Stainless Steel, Single Wall With Heat Insulation |
|---|---|---|---|
| Cooling System: | AC220V, 60Hz 1.5KW Air Conditioner | Protection Level: | IP65 |
| Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) | Cable Inlets: | From Cabinet Bottom |
| Door: | One Front Door And One Rear Door | Color: | Outdoor Anticorrosion Powder Coating RAL7035 |
| Lifting: | 4 Ears On The Top | Working Temperature: | -40°C ~ +85°C |
| High Light: | 37U Outdoor Telecom Cabinet,single wall Outdoor Telecom Cabinet,single wall outdoor telecom enclosure |
||

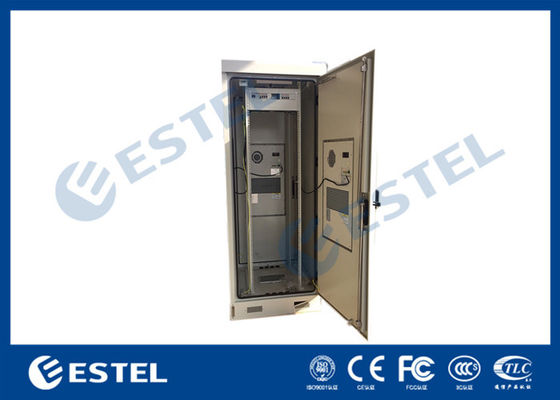

Stainless Steel IP65 37U Outdoor Telecom Cabinet Double Air Conditioning Cooling
IP65 37U Stainless Steel Outdoor Telecom Cabinet Front Back Access Double Air Conditioning Cooling
1. Application
The ET9090195-EQ-2D Outdoor Telecom Cabinet communication outdoor cabinets is designed based on wireless transmission stations of large capacity quickly mounted integrated cabinet. can integrate operator's Metro cell, RRU,BBU, integration of the switch power supply, battery etc. and to support different systems of transmission equipment, which can realize the site quickly installation, migration, realize the construction of low cost, high efficiency, energy saving, safety mode.
2. Features
(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) New structure design is the result of using the experience for many years, high strength, good sealing performance.
(3) Cabinet structure is made of high quality galvanized sheet
(4) Supporting a variety of the heat exchange equipment selection(compressor air conditioning, TEC air conditioning, heat exchanger, fan)
(5) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(6) All the cables used in the cabinet are made from flame retardant materials.
(7) The fixed screw are all made of 304 stainless steel, the grounding screw are all made of pure cooper.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 900×900×1950mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door and one rear door, and anti-theft three point lock for outdoor cabinet (support padlock). | |
| Material | Stainless steel, single wall with heat insulation | |
| Ingress Protection | IP65 | |
| Temperature Control | Cooling | Air conditioner |
| Lighting | LED lamp | LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +85°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC |
(1) External Dimension: W×D×H 900×900×1950mm (2) One compartment: including 37U 19” installation rack. (3) With one front door and one rear door, and anti-theft three point lock for outdoor cabinet (support padlock). (4) Materail: stainless steel, single wall with heat insulation. (5) Coating: outdoor powder anti-corrosion coating. (6) IP65 (7) Cable entry on the bottom. (8) Including 4 lifting ring on the top. (9) Including lifting hook on the base. (10) Installation method: floor mounted, including floor mount accessories. |
| 2 | Air Conditioner | 2 | PC |
Cooling capacity: 1.5KW. Power Supply: AC220V, 60Hz. One installed on front door, the other on back door. |
| 3 | LED Lamp | 2 | PC | AC220V, 60HZ, used for illumination |
| 4 | LED Lamp Switch | 2 | PC | Used for controlling LED lamp on/off |
| 5 | Package | 1 | PC | Wooden Case |
5. Cabinet Dimensions drawing
6. Similar Cabinet Pictures
